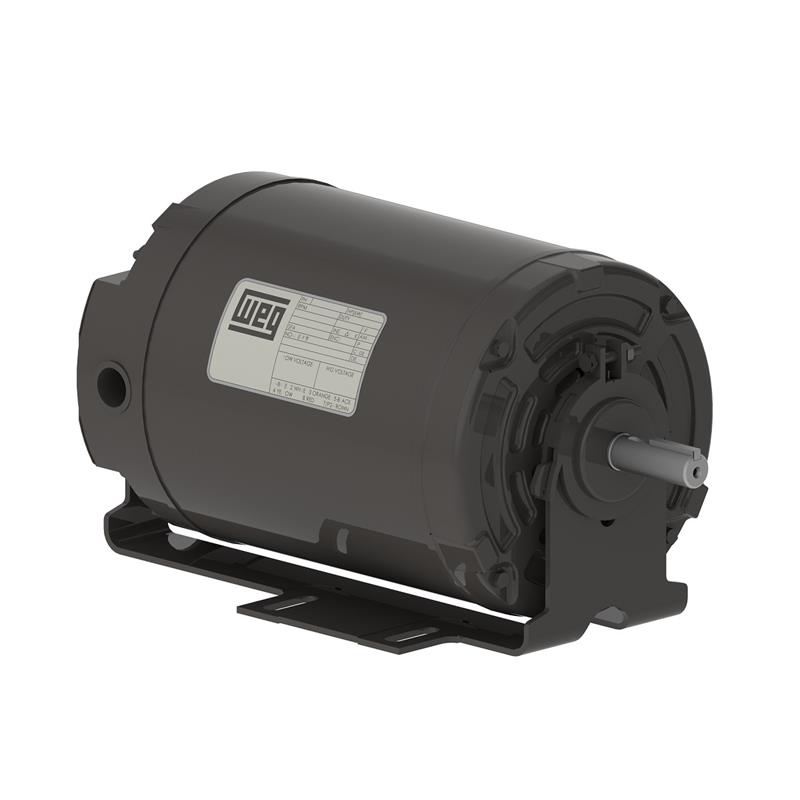

00118ES1BRBPFD56 WEG Motor (1 HP, 1800 RPM, 1 Phase, D56 Frame, TEAO Enclosure, 115/208-230 Voltage)
|
Applications |
|
WEG offers a complete line of TEFC Farm Duty motors providing high starting torque for the most demanding applications. Standard features such as v-rings provide versatility for indoor and outdoor applications. Overload protection available in all frames protects the motor from extreme overloads and offers maximum safety to operators. |
|
|
|
Features |
|
Double shielded ball bearings |
|
|
Insulation class B |
|
|
Automatic Reset Thermal Overload Protector |
|
| Specifications | | Brand | WEG | | Catalog Number | 00118ES1BRBPFD56 | | Type | Farm Duty Motors | | HP | 1 | | KW | 0.75 | | RPM | 1800 | | Phase | 1 | | C Dimension | 12.992 | | Service Factor | 1.15 | | Frame | D56 | | Enclosure | TEAO | | Full Load Amps | 7 | | Mount | Resilient Base | | Voltage | 115/208-230 | | Warranty | 1 Year |
Item Number:
00118ES1BRBPFD56
Manufacturer:
WEG
Manufacturer Part No:
00118ES1BRBPFD56
|
|
|
