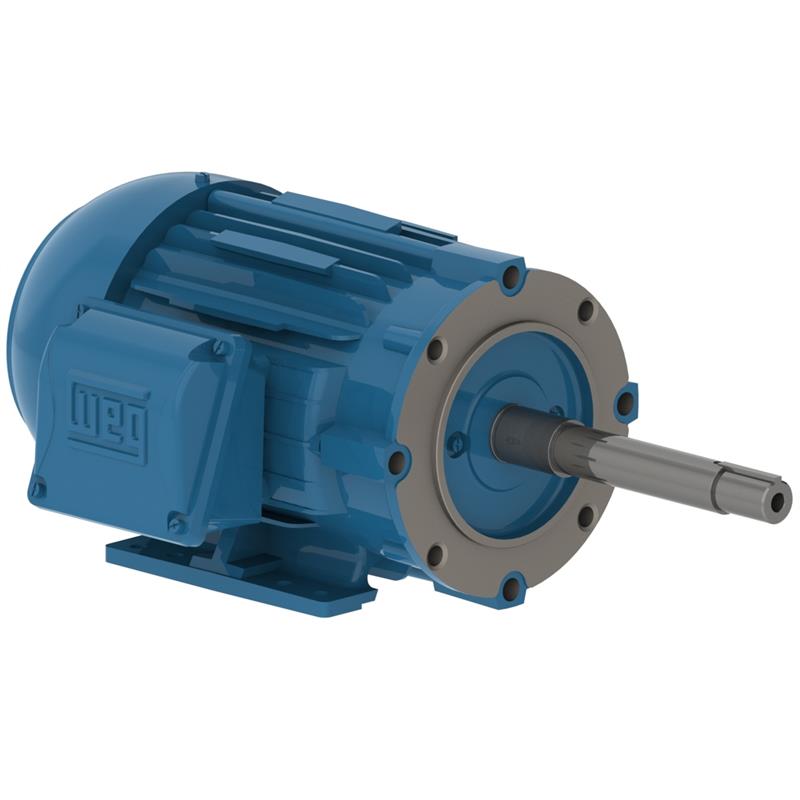

00118ET3E143JP-W22 WEG Motor, Close Coupled Pump (1 HP, 143JP FRAME, 460 V, THREE PHASE, TEFC , 1760 RPM)
| Applications | | Specially developed line for industrial and commercial pumping applications, such as Water pumping, Process, and Transfer and circulating pumps
| | | | Features | | Close Coupled Pump Motors, 3-Phase, Cast Iron, NEMA Premium, TEFC, JM & JP | | Tech Specs | | Brand | WEG Motors | | Model Number | 00118ET3E143JP-W22 | | HP | 1 HP | | RPM | 1760 | | FRAME | 143JP | | VOLTAGE | 460 V | | PHASE | THREE | | FREQUENCY | 60 Hz | | ENCLOSURE | TEFC | | APPROXIMATE WEIGHT (lb) | 41 | | FEET | YES | | TERMINAL BOX | LEFT | | FLANGE | FC-149 | | RATED CURRENT | 1.41 A | | LOCKED ROTOR CURRENT IL IN | 8.4 | | LOCKED ROTOR CURRENT | 11.8 A | | LOCKED ROTOR TORQUE | 2.3 | | BREAKDOWN TORQUE | 3.5 | | EFFICIENCY 50 | 80 | | EFFICIENCY 75 | 84 | | EFFICIENCY 100 | 85.5 | | POWER FACTOR 50 | 0.6 | | POWER FACTOR 75 | 0.7 | | POWER FACTOR 100 | 0.78 | | SERVICE FACTOR | 1.25 | | INERTIA KGM2 | 0.00494 kgm | | INERTIA SQ FT LB | 0.11723 sq.ft. | | LOCKED ROTOR TIME | 18 s | | NOISE LEVEL | 51 dB(A) | | ALTITUDE | 1000 | | DUTY CYCLE | S1 | | AMBIENT TEMPERATURE | -20C - +40C | | DEGREE OF PROTECTION | IP55 | | NO-LOAD CURRENT | 0.770 A | | INSULATION CLASS | F | | FULL LOAD TORQUE NM | 3.99 Nm | | FULL LOAD TORQUE LB FT | 2.94 .ft | | SLIP | 0.0222 | | DESIGN | B | | TEMPERATURE RISE | 80 K | | BEARINGS D E | 6206 ZZ | | BEARINGS N D E | 6204 ZZ | | REGREASING INTERVAL D E | - | | REGREASING INTERVAL N D E | - | | GREASE AMOUNT D E | - | | GREASE AMOUNT N D E | - | | | | | | |
Item Number:
00118ET3E143JP-W22
Manufacturer:
WEG
Manufacturer Part No:
00118ET3E143JP-W22
|
|
|
