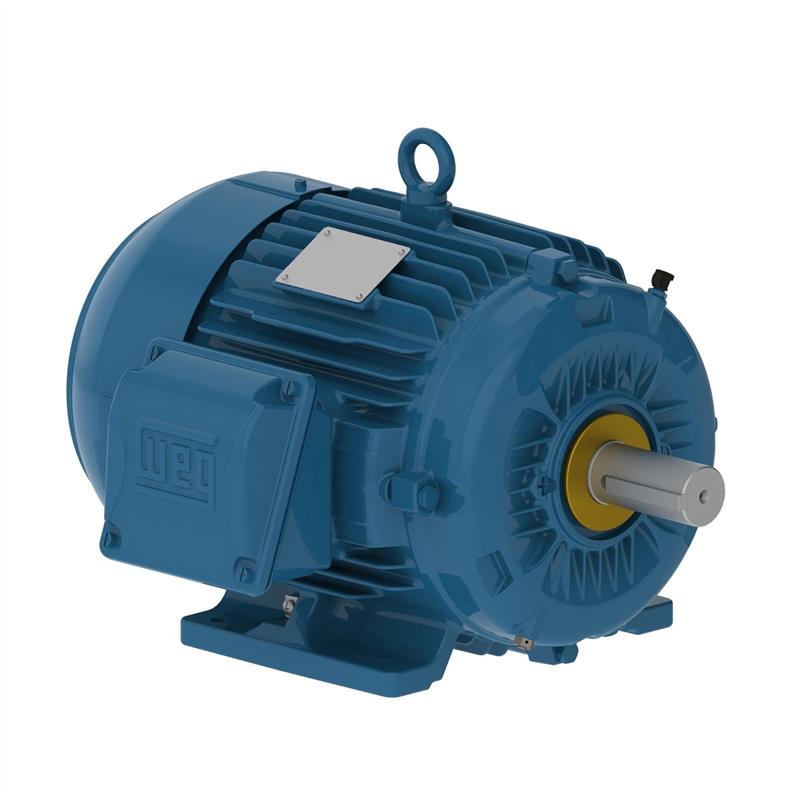

00156ST3HIE143T-W22 WEG Motor (1.5 HP, 143T FRAME, 575 V, THREE PHASE, TEFC , 3490 RPM)
| Applications | | Pumping applications, Pulp and paper mills, ical, Other
| | | | Features | | IEEE 841 Motors, 3-Phase, Cast Iron, NEMA Premium, TEFC | | Tech Specs | | Brand | WEG Motors | | Model Number | 00156ST3HIE143T-W22 | | HP | 1.5 HP | | RPM | 3490 | | FRAME | 143T | | VOLTAGE | 575 V | | PHASE | THREE | | FREQUENCY | 60 Hz | | ENCLOSURE | TEFC | | APPROXIMATE WEIGHT LB | 41 | | FEET | YES | | TERMINAL BOX | LEFT | | FLANGE | - | | RATED CURRENT | 1.53 A | | LOCKED ROTOR CURRENT IL IN | 8.9 | | LOCKED ROTOR CURRENT | 13.6 A | | LOCKED ROTOR TORQUE | 3.5 | | BREAKDOWN TORQUE | 3.8 | | EFFICIENCY 50 | 81.5 | | EFFICIENCY 75 | 84 | | EFFICIENCY 100 | 84 | | POWER FACTOR 50 | 0.72 | | POWER FACTOR 75 | 0.82 | | POWER FACTOR 100 | 0.86 | | SERVICE FACTOR | 1.25 | | INERTIA KGM2 | 0.00198 kgm | | INERTIA SQ FT LB | 0.04699 sq.ft. | | LOCKED ROTOR TIME | 21 s | | NOISE LEVEL | 68 dB(A) | | ALTITUDE | 1000 | | DUTY CYCLE | S1 | | AMBIENT TEMPERATURE | -20C - +40C | | DEGREE OF PROTECTION | IP55 | | NO-LOAD CURRENT | 0.600 A | | INSULATION CLASS | F | | FULL LOAD TORQUE NM | 3.02 Nm | | FULL LOAD TORQUE LB FT | 2.23 .ft | | SLIP | 0.0306 | | DESIGN | B | | TEMPERATURE RISE | 80 K | | BEARINGS D E | 6205 C3 | | BEARINGS N D E | 6204 C3 | | REGREASING INTERVAL D E | 20000 h | | REGREASING INTERVAL N D E | 20000 h | | GREASE AMOUNT D E | 4 g | | GREASE AMOUNT N D E | 4 g | | - | - | | | |
Item Number:
00156ST3HIE143T-W22
Manufacturer:
WEG
Manufacturer Part No:
00156ST3HIE143T-W22
|
|
|
