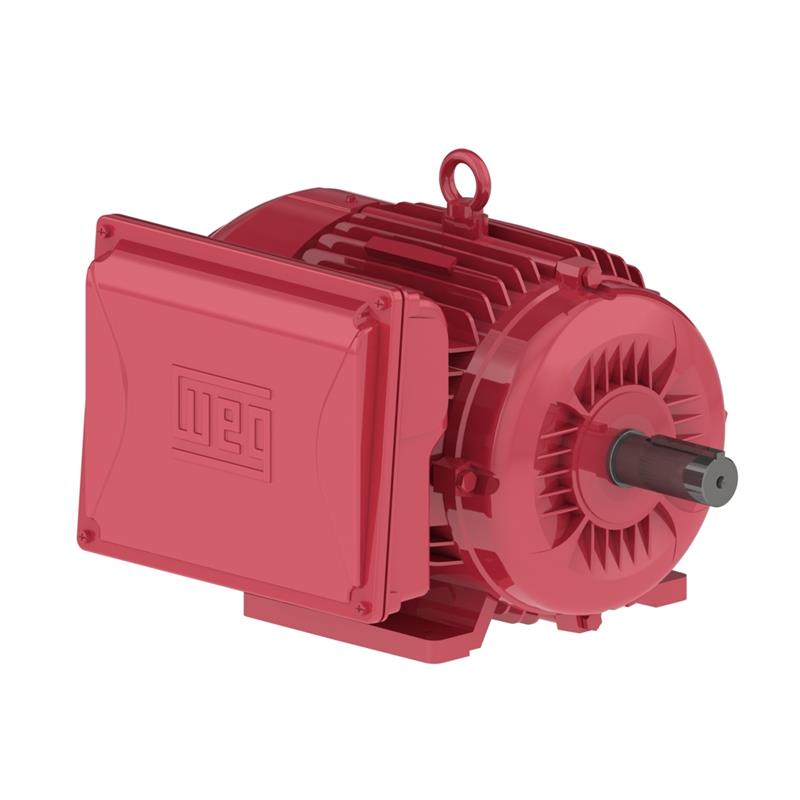

00218ES1RFD182T-W22 WEG General Purpose Motor (2 HP, 1800 RPM, 1 Phase, W182/4T Frame, TEFC, 115/230 Voltage, Foot Mount)
| Applications |
| High Starting Torque makes these motors ideal for a wide range of applications. |
| |
| Features |
| High Starting Torque |
|
| Ball Bearings |
|
| NPT Threaded Holes in Terminal Box |
|
| Class F insulation |
|
| F1 Mounted |
|
| V-Ring Seals |
|
|
Specifications
|
|
Brand
|
WEG
|
|
Catalog Number
|
00218ES1RFD182T-W22
|
|
Type
|
General Purpose Motor
|
|
HP
|
2
|
|
RPM
|
1800
|
|
Phase
|
1
|
|
Frame
|
W182/4T
|
|
Service Factor
|
1.15
|
|
Enclosure
|
TEFC
|
|
Voltage
|
115/230
|
|
Motor Mount
|
Foot Mount
|
|
Full Load Efficiency
|
81
|
|
Full Load AMPS
|
10
|
|
"C" Dimension
|
17.244
|
|
Warranty
|
1 Year
|
Item Number:
00218ES1RFD182T-W22
Manufacturer:
WEG
Manufacturer Part No:
00218ES1RFD182T-W22
|
|
|
