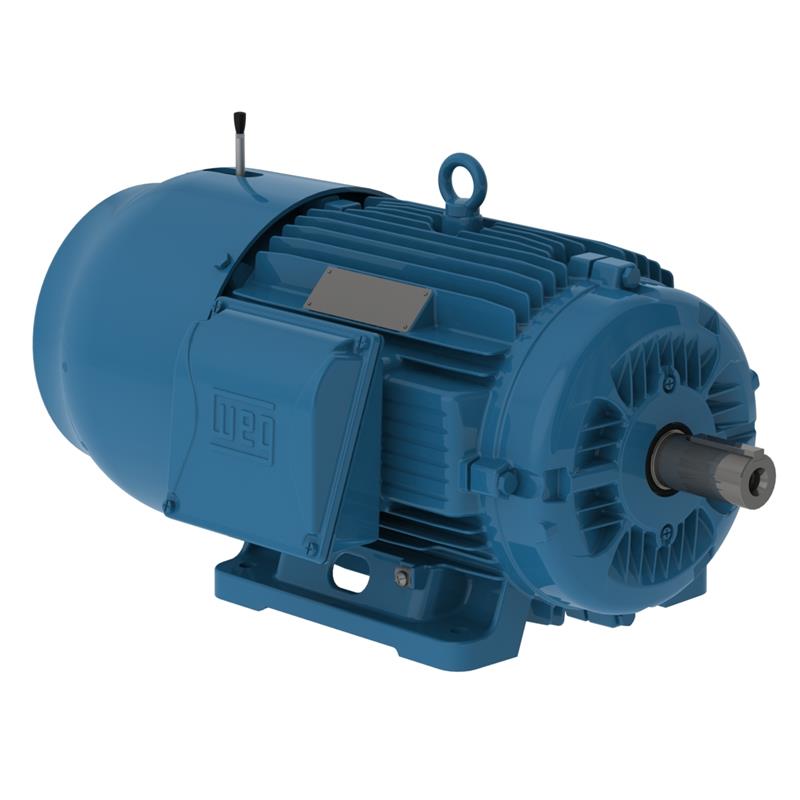

00309ET3EBM215T-W22 WEG Motor (3 HP, 900 RPM, 3 Phase, 213/5T Frame, TEFC, 230/460 V, Foot Mount)
|
Applications |
|
WEG W22 brake motors consist of an induction motor coupled to a disc brake. Brake is of sturdy construction with few moving parts which guarantees long durability and minimum maintenance. |
|
|
|
Features |
|
Class F insulation (Impregnation Resin and |
|
|
Magnet wire are class H) |
|
|
F1 Mounted |
|
|
Stainless Steel Nameplate - Laser etched with high contrast background |
|
|
NPT Threaded terminal box |
|
|
Armature type brake |
|
|
Manual Release |
|
|
Inverter Rated: 1
1000:1 for variable torque
20:1 for constant torque |
|
|
Regreasable ball bearings (Frames 254T and up) |
|
|
Stainless Steel Nameplate - Laser etched with high contrast background |
|
| Specifications | | Brand | WEG | | Catalog Number | 00309ET3EBM215T-W22 | | Type | Brake Motor | | HP | 3 | | RPM | 900 | | Phase | 3 | | Frame | 213/5T | | Enclosure | TEFC | | Voltage | 230/460 | | FL Amps | 4.55 | | FL Efficiency | 85.5 | | Frame Material | Cast Iron | | Service Factor | 1.25 | | "C" Dimensions | 23.188 | | Mounting | Foot Mount | | Item Condition | Factory New | | Warranty | 1 Year |
Item Number:
00309ET3EBM215T-W22
Manufacturer:
WEG
Manufacturer Part No:
00309ET3EBM215T-W22
|
|
|
