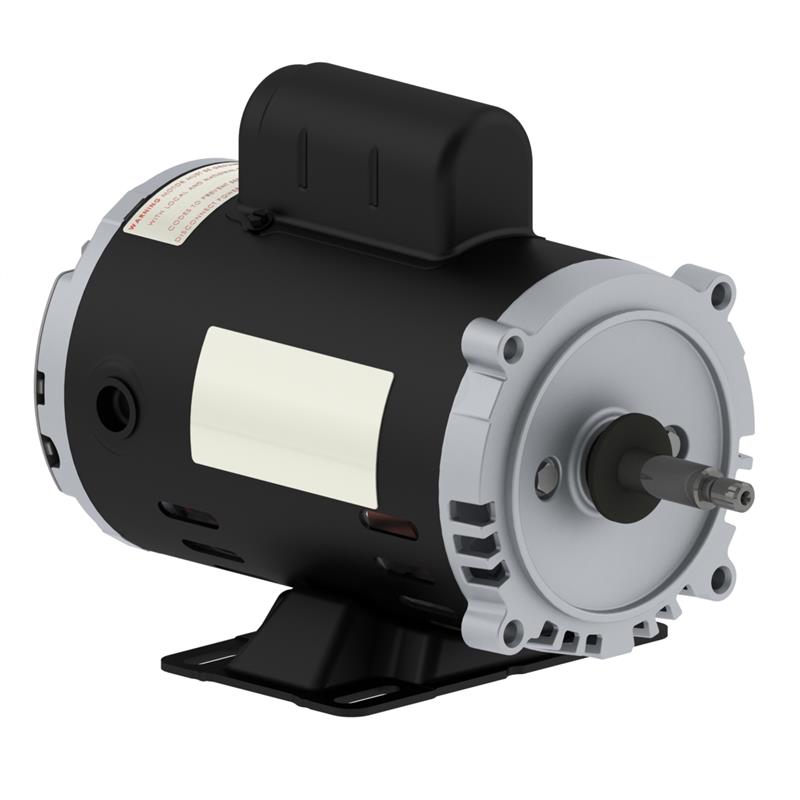

00336OS1DJP56J-S WEG Motor, Jet Pump (3 HP, E56 FRAME, 230 V, SINGLE PHASE, ODP , 3475 RPM)
| Applications |
| The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame, aluminum flange and threaded shaft end, these versatile single-phase motors provide torque and durability for several applications. |
| |
| Features |
| Jet Pump Motor, Single Phase, Rolled Steel, Standard Efficiency, ODP |
|
Tech Specs
|
|
Brand
|
WEG Motors
|
|
Model Number
|
00336OS1DJP56J-S
|
|
HP
|
3 HP
|
|
RPM
|
3475
|
|
FRAME
|
E56
|
|
VOLTAGE
|
230 V
|
|
PHASE
|
SINGLE
|
|
FREQUENCY
|
60 Hz
|
|
ENCLOSURE
|
ODP
|
|
APPROXIMATE WEIGHT (lb)
|
51
|
|
FEET
|
YES
|
|
TERMINAL BOX
|
LEFT
|
|
FLANGE
|
FC-149
|
|
RATED CURRENT
|
15.0 A
|
|
LOCKED ROTOR CURRENT IL IN
|
7
|
|
LOCKED ROTOR CURRENT
|
105 A
|
|
LOCKED ROTOR TORQUE
|
2.2
|
|
BREAKDOWN TORQUE
|
2.3
|
|
EFFICIENCY 50
|
76.7
|
|
EFFICIENCY 75
|
78.7
|
|
EFFICIENCY 100
|
77.1
|
|
POWER FACTOR 50
|
0.63
|
|
POWER FACTOR 75
|
0.76
|
|
POWER FACTOR 100
|
0.83
|
|
SERVICE FACTOR
|
1.15
|
|
INERTIA KGM2
|
0.00280 kgm
|
|
INERTIA SQ FT
|
0.06644 sq.ft.
|
|
LOCKED ROTOR TIME
|
6 s
|
|
NOISE LEVEL
|
-
|
|
ALTITUDE
|
1000
|
|
DUTY CYCLE
|
S1
|
|
AMBIENT TEMPERATURE
|
-20C - +40C
|
|
DEGREE OF PROTECTION
|
IP21
|
|
NO-LOAD CURRENT
|
8.00 A
|
|
INSULATION CLASS
|
B
|
|
FULL LOAD TORQUE NM
|
6.06 Nm
|
|
FULL LOAD TORQUE FT
|
4.47 .ft
|
|
SLIP
|
0.0347
|
|
DESIGN
|
-
|
|
TEMPERATURE RISE
|
80 K
|
|
BEARINGS D E
|
6203 2RS
|
|
BEARINGS N D E
|
6203 2RS
|
|
REGREASING INTERVAL D E
|
-
|
|
REGREASING INTERVAL N D E
|
-
|
|
GREASE AMOUNT D E
|
-
|
|
GREASE AMOUNT N D E
|
-
|
|
|
|
|
|
|
Item Number:
00336OS1DJP56J-S
Manufacturer:
WEG
Manufacturer Part No:
00336OS1DJP56J-S
|
|
|
