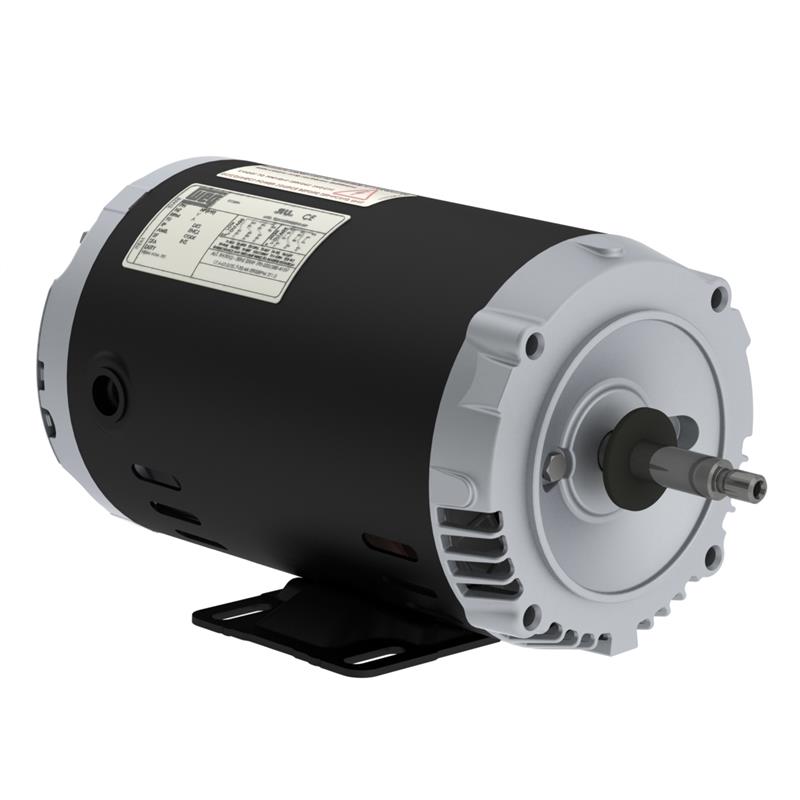

00336OS3EJP56J-S WEG Jet Pump Motor (3 HP, F56H FRAME, 208-230/460 V, THREE PHASE, ODP , 3460 RPM)
| Applications |
|
| |
| Features |
| Jet Pump Motors, 3-Phase, Rolled Steel, Standard Efficiency, ODP |
|
Tech Specs
|
|
Brand
|
WEG Motors
|
|
Model Number
|
00336OS3EJP56J
|
|
HP
|
3 HP
|
|
RPM
|
3460
|
|
FRAME
|
F56H
|
|
VOLTAGE
|
208-230/460 V
|
|
PHASE
|
THREE
|
|
FREQUENCY
|
60 Hz
|
|
ENCLOSURE
|
ODP
|
|
APPROXIMATE WEIGHT (lb)
|
50
|
|
FEET
|
YES
|
|
TERMINAL BOX
|
LEFT
|
|
FLANGE
|
FC-149
|
|
RATED CURRENT
|
8.35-7.75/3.87 A
|
|
LOCKED ROTOR CURRENT IL IN
|
7
|
|
LOCKED ROTOR CURRENT
|
54.2/27.1 A
|
|
LOCKED ROTOR TORQUE
|
2.8
|
|
BREAKDOWN TORQUE
|
3
|
|
EFFICIENCY 50
|
81.5
|
|
EFFICIENCY 75
|
82
|
|
EFFICIENCY 100
|
82
|
|
POWER FACTOR 50
|
0.7
|
|
POWER FACTOR 75
|
0.82
|
|
POWER FACTOR 100
|
0.89
|
|
SERVICE FACTOR
|
1.15 (1.00 at 208V)
|
|
INERTIA KGM2
|
0.00209 kgm
|
|
INERTIA SQ FT
|
0.04960 sq.ft.
|
|
LOCKED ROTOR TIME
|
10 s
|
|
NOISE LEVEL
|
-
|
|
ALTITUDE
|
1000
|
|
DUTY CYCLE
|
S1
|
|
AMBIENT TEMPERATURE
|
-20C - +40C
|
|
DEGREE OF PROTECTION
|
IP21
|
|
NO-LOAD CURRENT
|
4.02/2.01 A
|
|
INSULATION CLASS
|
B
|
|
FULL LOAD TORQUE NM
|
6.09 Nm
|
|
FULL LOAD TORQUE FT
|
4.49 .ft
|
|
SLIP
|
0.0389
|
|
DESIGN
|
A
|
|
TEMPERATURE RISE
|
80 K
|
|
BEARINGS D E
|
6204 2RS
|
|
BEARINGS N D E
|
6203 2RS
|
|
REGREASING INTERVAL D E
|
-
|
|
REGREASING INTERVAL N D E
|
-
|
|
GREASE AMOUNT D E
|
-
|
|
GREASE AMOUNT N D E
|
-
|
|
|
|
|
|
|
Item Number:
00336OS3EJP56J-S
Manufacturer:
WEG
Manufacturer Part No:
00336OS3EJP56J-S
|
|
|
