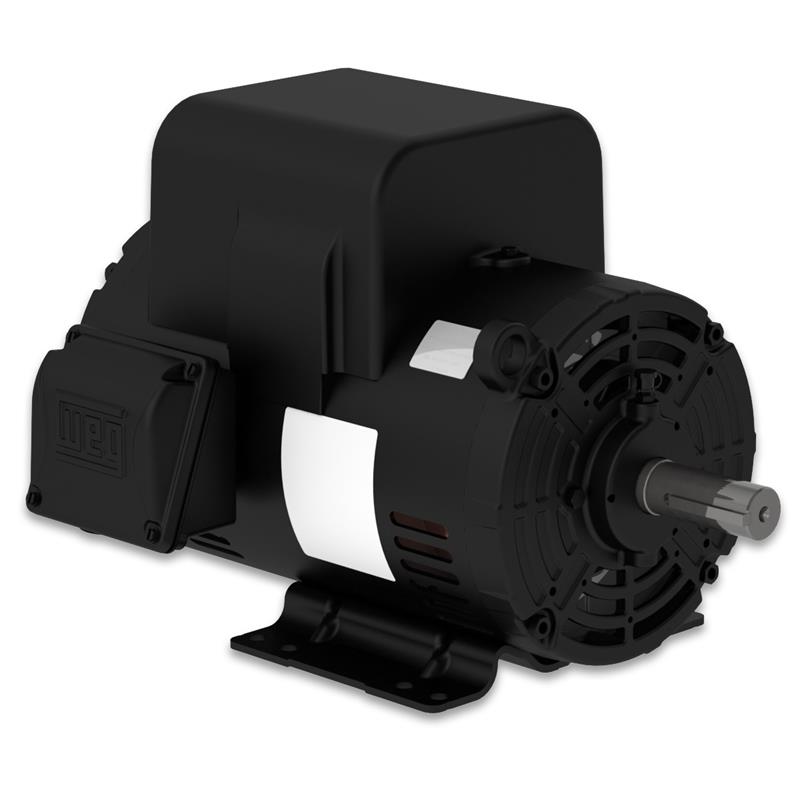

00518OS1C184T-S WEG Motor (5 HP, 1800 RPM, 1 Phase, 60 Hertz, 184T Frame, Foot-mounted, ODP, 208-230 V)
| Applications |
| High Starting Torque makes these motors ideal for a wide range of applications. |
| |
| Features |
| High Starting Torque |
|
| 182T frames and up are cast iron for severe duty |
|
| NPT Threaded Holes in Terminal Box |
|
| Class F insulation |
|
| V-ring Seals |
|
| Class F insulation |
|
|
Specifications
|
|
Brand
|
WEG
|
|
Catalog Number
|
00518OS1C184T
|
|
Type
|
General Purpose Motor
|
|
Series
|
Single Phase Motor
|
|
HP
|
5
|
|
RPM
|
1800
|
|
Phase
|
1
|
|
Hertz
|
60
|
|
Frame
|
184T
|
|
Mounting
|
Foot-mounted
|
|
Enclosure
|
ODP
|
|
Voltage
|
208-230
|
|
Frame Material
|
Cast Iron
|
|
Service Factor
|
1.25
|
|
"C" Dimensions
|
14.87
|
|
Warranty
|
1 Year
|
Item Number:
00518OS1C184T-S
Manufacturer:
WEG
Manufacturer Part No:
00518OS1C184T-S
|
|
|
