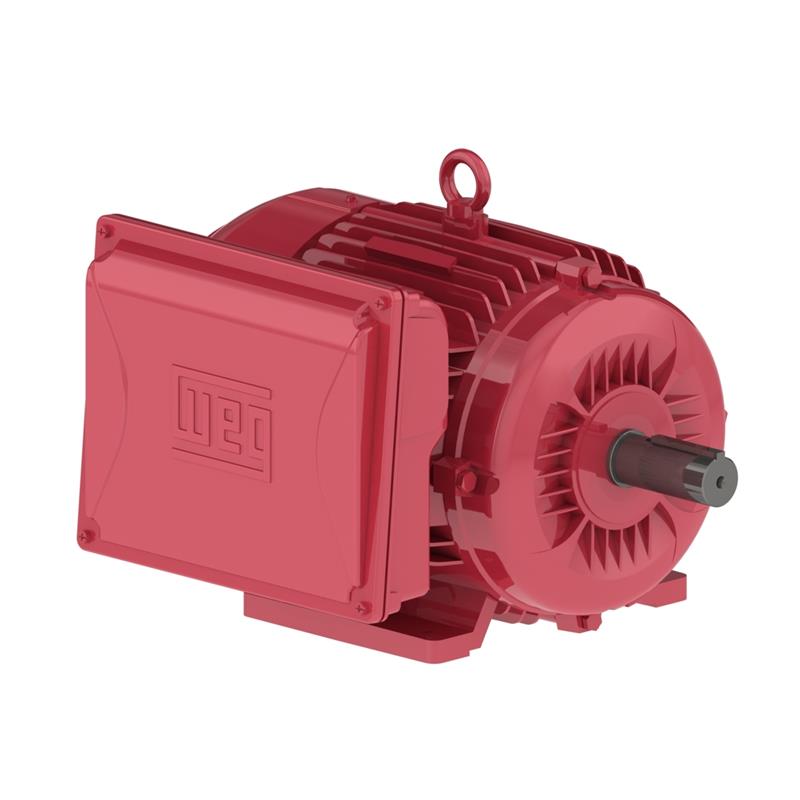

00718ES1DFD215Z-W22 WEG Motor, Farm Duty (7.5 HP, 215TZ FRAME, 230 V, SINGLE PHASE, TEFC , 1730 RPM)
| Applications |
| Pumps, Fans, Conveyors, Poultry equipment, Air compressors, Other farm machinery |
| |
| Features |
| Farm Duty Motor, Single Phase, Rolled Steel or Cast Iron, Standard Efficiency, TEFC |
|
Tech Specs
|
|
Brand
|
WEG Motors
|
|
Model Number
|
00718ES1DFD215Z-W22
|
|
HP
|
7.5 HP
|
|
RPM
|
1730
|
|
FRAME
|
215TZ
|
|
VOLTAGE
|
230 V
|
|
PHASE
|
SINGLE
|
|
FREQUENCY
|
60 Hz
|
|
ENCLOSURE
|
TEFC
|
|
APPROXIMATE WEIGHT (lb)
|
157
|
|
FEET
|
YES
|
|
TERMINAL BOX
|
LEFT
|
|
FLANGE
|
-
|
|
RATED CURRENT
|
33.0 A
|
|
LOCKED ROTOR CURRENT IL IN
|
7.5
|
|
LOCKED ROTOR CURRENT
|
248 A
|
|
LOCKED ROTOR TORQUE
|
4
|
|
BREAKDOWN TORQUE
|
2.6
|
|
EFFICIENCY 50
|
77
|
|
EFFICIENCY 75
|
81
|
|
EFFICIENCY 100
|
83
|
|
POWER FACTOR 50
|
0.71
|
|
POWER FACTOR 75
|
0.81
|
|
POWER FACTOR 100
|
0.9
|
|
SERVICE FACTOR
|
1.15
|
|
INERTIA KGM2
|
0.03720 kgm
|
|
INERTIA SQ FT
|
0.88276 sq.ft.
|
|
LOCKED ROTOR TIME
|
6 s
|
|
NOISE LEVEL
|
-
|
|
ALTITUDE
|
1000
|
|
DUTY CYCLE
|
S1
|
|
AMBIENT TEMPERATURE
|
-20C - +40C
|
|
DEGREE OF PROTECTION
|
IP55
|
|
NO-LOAD CURRENT
|
18.0 A
|
|
INSULATION CLASS
|
F
|
|
FULL LOAD TORQUE NM
|
30.5 Nm
|
|
FULL LOAD TORQUE FT
|
22.5 .ft
|
|
SLIP
|
0.0389
|
|
DESIGN
|
-
|
|
TEMPERATURE RISE
|
80 K
|
|
BEARINGS D E
|
6308 ZZ
|
|
BEARINGS N D E
|
6206 ZZ
|
|
REGREASING INTERVAL D E
|
-
|
|
REGREASING INTERVAL N D E
|
-
|
|
GREASE AMOUNT D E
|
-
|
|
GREASE AMOUNT N D E
|
-
|
|
|
|
|
|
|
Item Number:
00718ES1DFD215Z-W22
Manufacturer:
WEG
Manufacturer Part No:
00718ES1DFD215Z-W22
|
|
|
