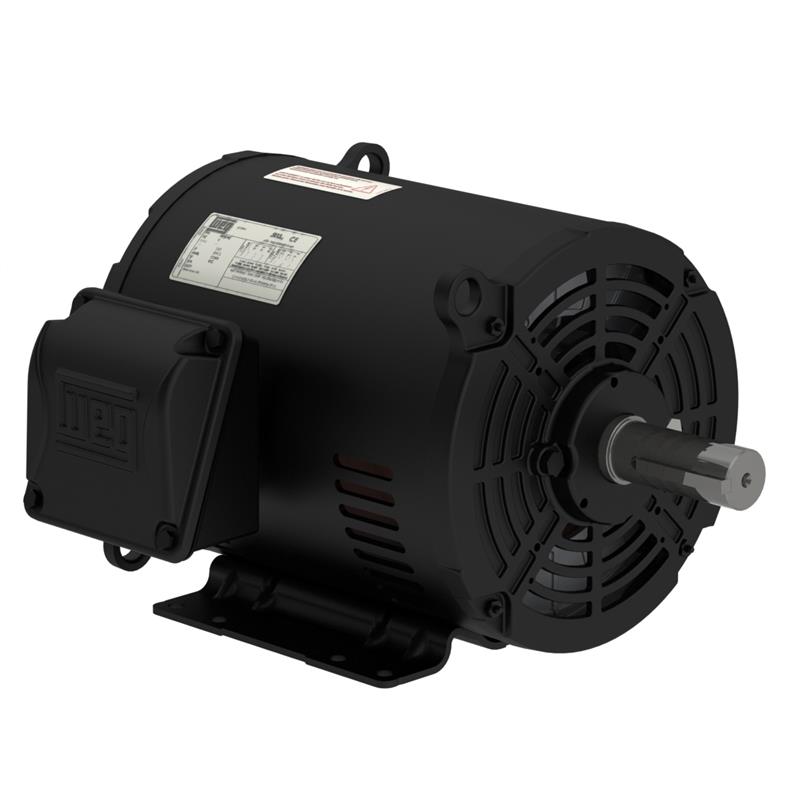

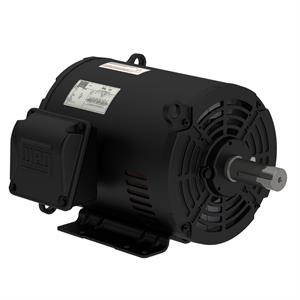

01018OT3ECD215T-S WEG Compressor Duty Motor (10 HP, 1800 RPM, 3 Phase, 215T Frame, 208-230/460 Voltage, ODP Enclosure)
| Applications |
| These high quality motors are designed to meet the high torque requirements of air compressor loads. Special electrical and mechanical design guarantee reliable service and longer motor life. |
| |
| Features |
| Single-Phase: Class B insulation; Start Capacitor; Ball bearings; Manual Reset Thermal Overload Protection; High starting torque; and Rolled Steel frames have base seam welded to the frame for heavy duty use. |
|
| Three-Phase: Class F insulation (Impregnation Resin and Magnet wire are class H); Class B Rise at 1.15 Service Factor; F1 Mounted (Cast Iron Frame motors are F2 convertible); Stainless Steel Nameplate - Laser etched with high contrast background. |
|
|
Specifications
|
|
Brand
|
WEG
|
|
Catalog Number
|
01018OT3ECD215T-S
|
|
Type
|
Definite Purpose Motors
|
|
Series
|
Compressor Duty Motors
|
|
HP
|
10
|
|
KW
|
7.5
|
|
RPM
|
1800
|
|
Phase
|
3
|
|
Service Factor
|
1.15
|
|
Frame
|
215T
|
|
Voltage
|
208-230/460
|
|
Enclosure
|
ODP
|
|
Mount
|
Foot Mount
|
|
Full Load Amps
|
12.2
|
|
Warranty
|
1 Year
|
Item Number:
01018OT3ECD215T-S
Manufacturer:
WEG
Manufacturer Part No:
01018OT3ECD215T
|
|
|
