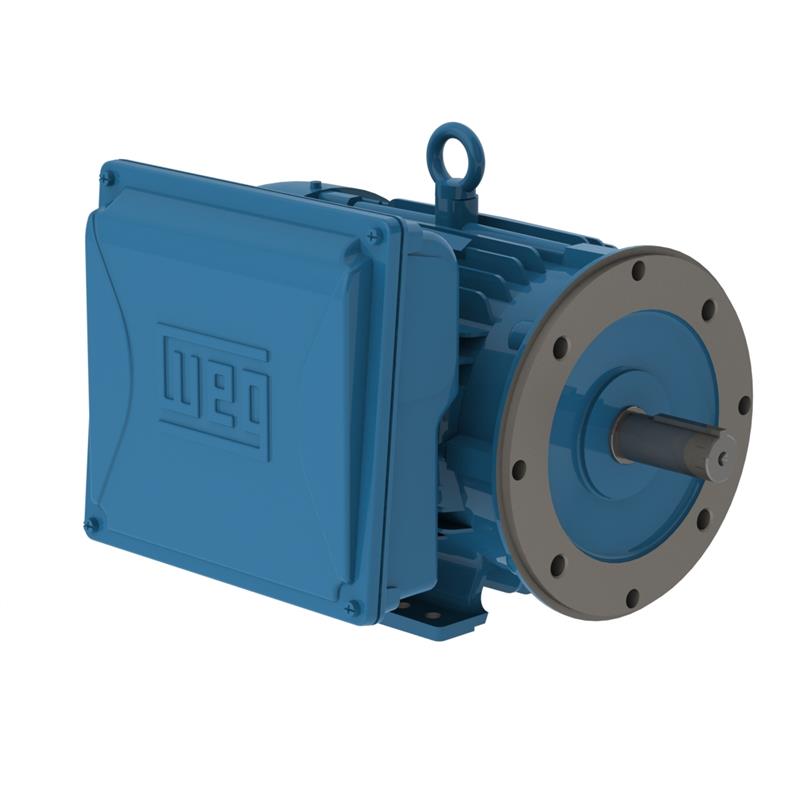

01036ES1E215TC-W22 WEG General Purpose C-Face Motor (10 HP, 1PH, 208-230/460V)
|
Images may be generic. Please inquire
|
MSRP:
$1,970.00
Your Price:
Call for Pricing
|
| Applications |
| High Starting Torque makes these motors ideal for a wide range of applications. |
| |
| Features |
| High Starting Torque |
|
| 182T frames and up are cast iron for severe duty |
|
| NPT Threaded Holes in Terminal Box |
|
| Class F insulation |
|
| V-ring Seals |
|
| Class F insulation |
|
|
Specifications
|
|
Brand
|
WEG
|
|
Catalog Number
|
01036ES1E215TC-W22
|
|
Type
|
General Purpose C-Face Motor
|
|
Series
|
Single Phase Motor
|
|
HP
|
10
|
|
RPM
|
3600
|
|
Phase
|
1
|
|
Hertz
|
60
|
|
Frame
|
215TC
|
|
Mounting
|
Foot-mounted
|
|
Enclosure
|
TEFC
|
|
Voltage
|
208-230/460
|
|
Full Load Amps
|
19.4
|
|
Full Load Efficiency
|
86
|
|
Frame Material
|
Cast Iron
|
|
Warranty
|
1 Year
|
Item Number:
01036ES1E215TC-W22
Manufacturer:
WEG
Manufacturer Part No:
01036ES1E215TC-W22
|
|
|
