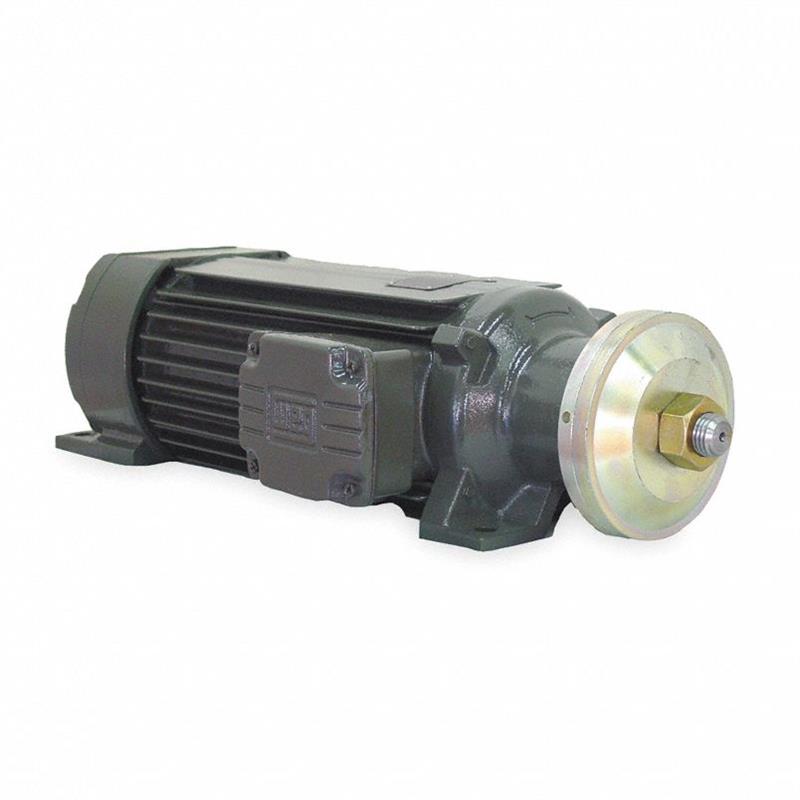

01036ES3HSA90LR WEG Motor, Saw Arbor (10 HP, 90L FRAME, 575 V, THREE PHASE, TEFC , 3480 RPM)
| Applications |
| Circular saws, Pendulum saws, Grinding machines, Polishing machines |
| |
| Features |
| Saw Arbor Motors, 3-Phase, Cast Iron, Standard Efficiency, TEFC |
|
Tech Specs
|
|
Brand
|
WEG Motors
|
|
Model Number
|
01036ES3HSA90LR
|
|
HP
|
10 HP
|
|
RPM
|
3480
|
|
FRAME
|
90L
|
|
VOLTAGE
|
575 V
|
|
PHASE
|
THREE
|
|
FREQUENCY
|
60 Hz
|
|
ENCLOSURE
|
TEFC
|
|
APPROXIMATE WEIGHT (lb)
|
166
|
|
FEET
|
YES
|
|
TERMINAL BOX
|
RIGHT
|
|
FLANGE
|
-
|
|
RATED CURRENT
|
9.83 A
|
|
LOCKED ROTOR CURRENT IL IN
|
8.5
|
|
LOCKED ROTOR CURRENT
|
83.6 A
|
|
LOCKED ROTOR TORQUE
|
4
|
|
BREAKDOWN TORQUE
|
4.2
|
|
EFFICIENCY 50
|
82
|
|
EFFICIENCY 75
|
84.5
|
|
EFFICIENCY 100
|
85
|
|
POWER FACTOR 50
|
0.77
|
|
POWER FACTOR 75
|
0.86
|
|
POWER FACTOR 100
|
0.9
|
|
SERVICE FACTOR
|
1.15
|
|
INERTIA KGM2
|
0.01400 kgm
|
|
INERTIA SQ FT
|
0.33222 sq.ft.
|
|
LOCKED ROTOR TIME
|
7 s
|
|
NOISE LEVEL
|
68 dB(A)
|
|
ALTITUDE
|
1000
|
|
DUTY CYCLE
|
S6 50%
|
|
AMBIENT TEMPERATURE
|
-20C - +40C
|
|
DEGREE OF PROTECTION
|
IP54
|
|
NO-LOAD CURRENT
|
3.60 A
|
|
INSULATION CLASS
|
F
|
|
FULL LOAD TORQUE NM
|
20.2 Nm
|
|
FULL LOAD TORQUE FT
|
14.9 .ft
|
|
SLIP
|
0.0333
|
|
DESIGN
|
N
|
|
TEMPERATURE RISE
|
80 K
|
|
BEARINGS D E
|
6308 ZZ
|
|
BEARINGS N D E
|
6208 ZZ
|
|
REGREASING INTERVAL D E
|
-
|
|
REGREASING INTERVAL N D E
|
-
|
|
GREASE AMOUNT D E
|
-
|
|
GREASE AMOUNT N D E
|
-
|
|
|
|
|
|
|
Item Number:
01036ES3HSA90LR
Manufacturer:
WEG
Manufacturer Part No:
01036ES3HSA90LR
|
|
|
