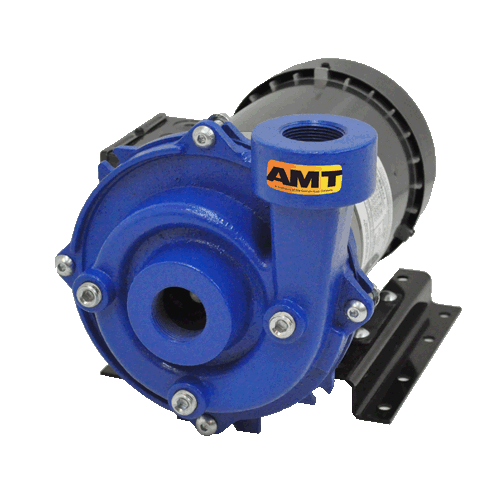

AMT Pumps 07ES05C-1P Straight Centrifugal Pump (1/2 HP, 1 Phase, 115-208/230V)
| Applications |
| AMT Solids Handling End Suction Centrifugal pumps are designed for continuous-duty OEM, Industrial/Commercial and General Service applications including circulation, chemical processing, liquid transfer and cooling. |
| |
| Features |
| Cast Iron Construction |
|
| EPDM/EPR Mechanical Seal and O-rings |
|
| 303 Stainless Steel Motor Shaft |
|
| NEMA 56J TEFC Single or Three Phase Motors |
|
| NEMA Dual Cycle 50/60 Hz Base Mounted Motor |
|
| Self-cleaning Impeller |
|
| Discharge Rotates in 45 Increments |
|
| Maximum Working Pressure 125 PSI |
|
| Maximum Temperature 180 F |
|
| Front Drain Plugs |
|
| QSPQuick Ship Pump for Many Models |
|
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
07ES05C-1P
|
|
Type
|
Chemical Pumps
|
|
Series
|
Straight Centrifugal End Suction Chemical Pump
|
|
Curve
|
A
|
|
HP
|
1/2
|
|
Phase
|
1
|
|
Enclosure
|
TEFC
|
|
Voltage
|
115-208/230
|
|
Full Load Amps
|
9/5
|
|
Suction
|
3/4" NPT
|
|
Discharge
|
3/4" NPT
|
|
Length
|
13.9"
|
|
Width
|
10.1"
|
|
Height
|
9.9"
|
|
Ship Wt. (Lbs.)
|
47
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
Item Number:
07ES05C-1P
Manufacturer:
AMT
Manufacturer Part No:
07ES05C-1P
|
|
|
