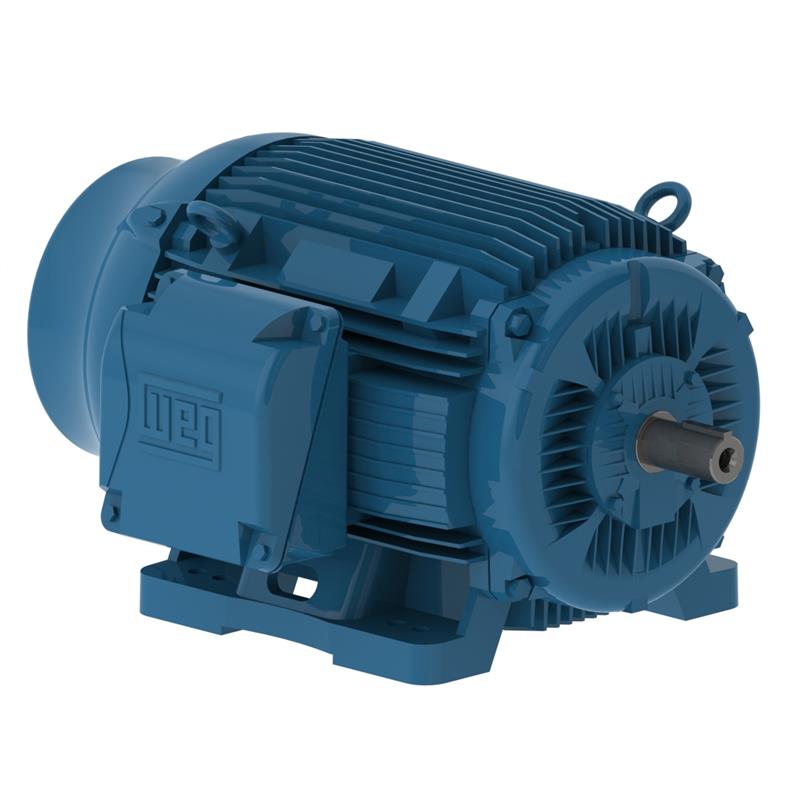

10018ET3E405T-W22G WEG Motor (100 HP, 1800 RPM, Three Phase, 404/5T Frame, TEFC Enclosure, 208-230/460 Voltage)
| Applications |
| High Starting Torque makes these motors ideal for a wide range of applications. |
| |
| Features |
| New ventilation system for improved thermal performance |
|
| Robust feet design suitable for tougher applications |
|
| Oversized diagonally split aluminum terminal box that exceeds IP55 requirements |
|
| Terminal box rotatable in 90 degrees increments for flexibility during installation |
|
| Color coded leads as standard for easy wiring |
|
| Bearing cap as standard on flanged motors, optional on non flanged |
|
| Suitable for VFD operation as per NEMA MG1 part 31.4.4.2 |
|
| Motor frame painting system 500 hours salt spray resistant |
|
|
Specifications
|
|
Brand
|
WEG
|
|
Catalog Number
|
10018ET3E405T-W22G
|
|
Type
|
Air Handling Motor
|
|
Series
|
Commercial HVAC Motors
|
|
HP
|
100
|
|
KW
|
75
|
|
RPM
|
1800
|
|
Phase
|
Three
|
|
C-Dimentions
|
39.73
|
|
Service Factor
|
1.25
|
|
Frame
|
404/5T
|
|
Enclosure
|
TEFC
|
|
Full Load Amps
|
111
|
|
Motor Mount
|
Foot Mount
|
|
Voltage
|
208-230/460
|
|
Warranty
|
1 Year
|
Item Number:
10018ET3E405T-W22G
Manufacturer:
WEG
Manufacturer Part No:
10018ET3E405T-W22G
|
|
|
