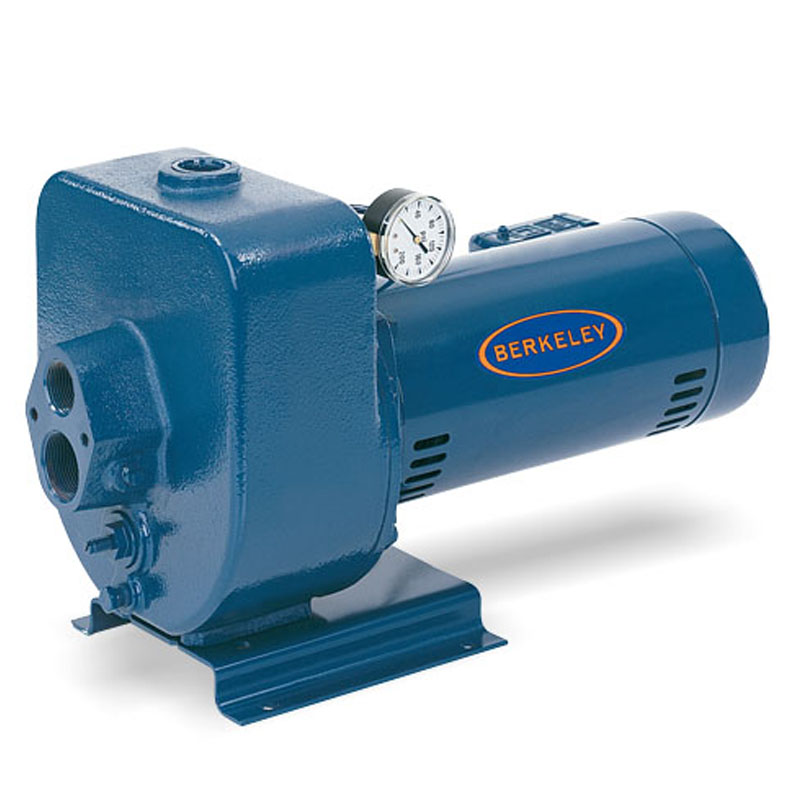

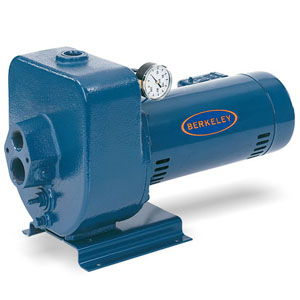

10LT2 Berkeley Horizontal Multi-Stage Jet Pump (1 HP, 1-1/4" Suction, 1" Drive, 1" Discharge, 115/230 Voltage, LT2 Series)
| Applications |
| LT2 Series Multi-Stage Jet Pumps are the highest performing pumps available in its category. The LT2 Series Convertible Jets utilize the built-in regulator, offering easier priming and better range of performance from a complete line of Shallow Well, 4" Double Pipe, 2" and 3" Single Pipe Jet Packages. Pump may also be operated as a self-priming centrifugal (to 25 ft.) to provide a wide range of high pressure applications. APPLICATIONS Water systems and sprinkling for homes, farms and cottages. |
| |
| Features |
| Automatic Pressure Regulator: Fasteracting and quieter, design eliminates hunting for correct drive pressure. New improved stem and guide are precisely molded to assure efficient, trouble-free performance on all deep wells. See ordering information (deep well only). |
|
| Quality Construction: Close-grained cast iron pump body is rugged, one-piece unit, specially treated to resist corrosion. Drain port provided for easy winterizing. |
|
| Precision-Machined Diffusers: Assure faster priming. |
|
| Mechanical Shaft Seal: Precision-lapped and highly polished carbon-ceramic, stainless steel construction. Internal design guarantees continuous water lubrication for maximum protection. |
|
| Polycarbonate Impellers: Precisionmolded for perfect balance, and ultrasmooth for highest performance and efficiency. |
|
| Motor Windings: Superior insulation materials protect against excessive moisture and contaminants to ensure prolonged motor life. |
|
| Dustproof Cover: All electrical components are protected from dirt, dust and insects by a dustproof canopy. Ventilating air cannot contaminate vital switching components. This eliminates the most common cause of motor failure. |
|
| Balanced Rotor: Diecast under high pressures for uniform performance and greater efficiency...dynamically balanced. |
|
| Heavy-Duty Ball Bearings: Shielded, permanently lubricated bearings are extensively tested to ensure extended life and smooth, quiet operation. |
|
| Pump and Motor Shaft: Stainless steel for maximum corrosion resistance;. one-piece threaded shaft for positive impeller drive and alignment. |
|
|
Specifications
|
|
Brand
|
Berkeley
|
|
Catalog Number
|
10LT2
|
|
Type
|
Cast iron, horizontal multi-stage Pump
|
|
Series
|
LT2
|
|
HP
|
1
|
|
Suction
|
1-1/4"
|
|
Drive
|
1"
|
|
Discharge
|
1"
|
|
Voltage
|
115/230
|
|
Body
|
One-piece rugged cast iron
|
|
Pump and Motor Shaft
|
416 stainless steel
|
|
Impeller
|
Polycarbonate
|
|
Diffuser
|
Corrosion-resistant cast iron
|
|
Pressure Switch Pre-Set
|
3050 PSI
|
|
Suction Ports
|
Drive-over-Suction
|
|
Regulator, tubing, pipe plug and compression fitting
|
PKG 107
|
Item Number:
10LT2
Manufacturer:
Berkeley Pumps
Manufacturer Part No:
10LT2
|
|
|
