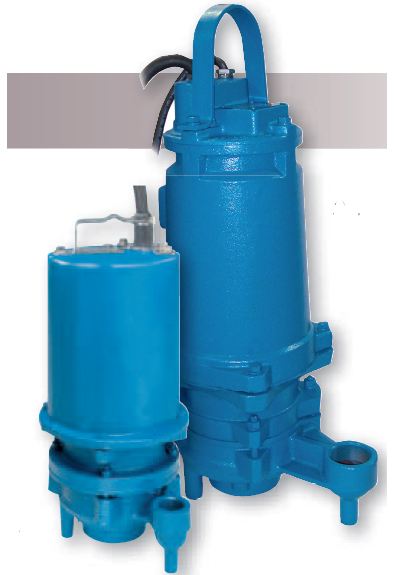

110611 Barnes Grinder Pump (SGVF2032L , 2 HP, 240 VOLT, 1 1/4" NPT Discharge, 3450 RPM)
|
Images may be generic. Please inquire
|
Your Price:
Call For Availability
|
|
Applications |
|
THE GRINDER PUMP IS DESIGNED TO
REDUCE DOMESTIC, COMMERCIAL,
INSTITUTIONAL AND LIGHT INDUSTRIAL
SEWAGE TO A FINELY GROUND SLURRY. |
|
|
|
Features |
|
Barnes SGV heavy-duty grinder pump for trouble-free operation in commercial and residential applications. |
|
|
Cast iron vortex impeller handles sewage slurry with no possibility of clogging. |
|
|
Exclusive Slicerator easily reduces solids to a fine slurry. |
|
|
Double mechanical seal operates in a clean oil environment for maximum life. |
|
|
Optional moisture detector available. |
|
|
Oil-filled motor provides outstanding cooling as well as an ideal environment for optimum bearing life. |
|
|
Exclusive quick connect power cord is pre-wired, one plug makes installation quick and easy while startup problems are virtually eliminated. |
|
|
Custom molded design seals tight and reduces strain. |
|
| Specifications | | Brand | Barnes | | Part Number | 110611 | | Type | Grinder Pump | | Series | Submersible Grinder Pump Series SGVF & SGVH | | Catalog Number | SGVF2032L | | HP | 2 | | VOLT | 240 | | PH/Hz | 3 / 60 | | Discharge | 1 1/4" NPT | | RPM | 3450 | | NEMA START CODE | J | | FULL LOAD AMPS | 9 | | LOCKED ROTOR AMPS | 36 | | CORD SIZE | 12/4 | | CORD TYPE | SOW | | CORD O.D. .02 (.5) in (mm) | .67 (17) | | Warranty | 1 Year | | Notes | See Support Documents |
Item Number:
110611
Manufacturer:
Barnes Pumps
Manufacturer Part No:
SGVF2032L
|
|
|
