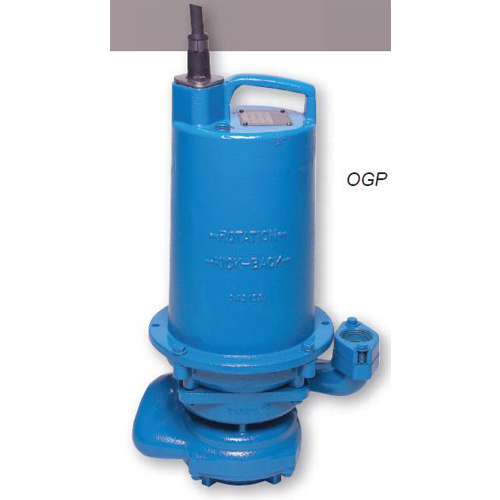

115328 Barnes Grinder Pump (OGP2022L , 2 HP, 240 VOLT, 1 1/4" NPT Discharge, 3450 RPM)
|
Images may be generic. Please inquire
|
Your Price:
Suggested Replacement Model # 145027
|
| Applications |
| THE GRINDER PUMP IS DESIGNED TO REDUCE DOMESTIC SEWAGE TO A FINELY GROUND SLURRY. |
| |
| Features |
| Quick disconnect cord |
|
| Threaded discharge flange |
|
| Exclusive Slicerator |
|
| Integral capacitors for start and run |
|
| Angular contact bearings 100,000 hour L-10 rating |
|
| Oil filled motor with overload protection |
|
| Silicon carbide mechanical seal for long life |
|
| Vortex impellers for solids handling |
|
| Interstage passage |
|
|
Specifications
|
|
Brand
|
Barnes
|
|
Part Number
|
115328
|
|
Type
|
Grinder Pump
|
|
Series
|
Submersible Grinder Pump Series OGP
|
|
Catalog Number
|
OGP2022L
|
|
HP
|
2
|
|
VOLT
|
240
|
|
PH/Hz
|
1 / 60
|
|
Discharge
|
1 1/4" NPT
|
|
RPM
|
3450
|
|
NEMA START CODE
|
H
|
|
FULL LOAD AMPS
|
16.5
|
|
LOCKED ROTOR AMPS
|
53.8
|
|
CORD SIZE
|
12/3
|
|
CORD TYPE
|
SOW
|
|
CORD O.D. .02 (.5) in (mm)
|
0.61 (15.50)
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
Item Number:
115328
Manufacturer:
Barnes Pumps
Manufacturer Part No:
OGP2022L
|
|
|
