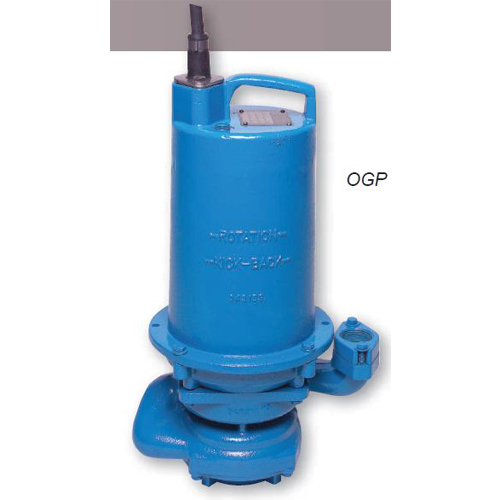

116663 Barnes Grinder Pump (OGP2022AUF , 2 HP, 240 VOLT, 1 1/4" NPT Discharge, 3450 RPM)
|
Images may be generic. Please inquire
|
Your Price:
Call For Availability
|
|
Applications |
|
THE GRINDER PUMP IS DESIGNED TO
REDUCE DOMESTIC SEWAGE TO A FINELY
GROUND SLURRY. |
|
|
|
Features |
|
Quick disconnect cord |
|
|
Threaded discharge flange |
|
|
Exclusive Slicerator |
|
|
Integral capacitors for start and run |
|
|
Angular contact bearings 100,000 hour L-10 rating |
|
|
Oil filled motor with overload protection |
|
|
Silicon carbide mechanical seal for long life |
|
|
Vortex impellers for solids handling |
|
|
Interstage passage |
|
| Specifications | | Brand | Barnes | | Part Number | 116663 | | Type | Grinder Pump | | Series | Submersible Grinder Pump Series OGP-AU | | Catalog Number | OGP2022AUF | | HP | 2 | | VOLT | 240 | | PH/Hz | 1 / 60 | | Discharge | 1 1/4" NPT | | RPM | 3450 | | NEMA START CODE | H | | FULL LOAD AMPS | 16.5 | | LOCKED ROTOR AMPS | 53.8 | | CORD SIZE | 12/5 | | CORD TYPE | SOW | | CORD O.D. .02 (.5) in (mm) | .71 (18) | | Warranty | 1 Year | | Notes | See Support Documents |
Item Number:
116663
Manufacturer:
Barnes Pumps
Manufacturer Part No:
OGP2022AUF
|
|
|
