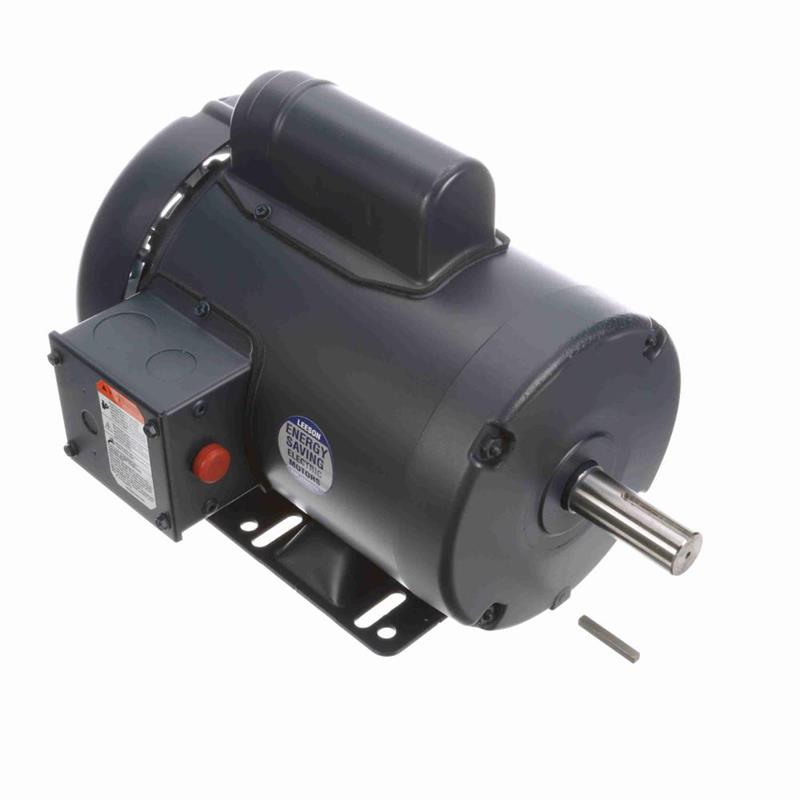

120008.00 Leeson Motors (M143C17FB2, 1 HP, 143 Frame, 1740RPM, 115/208-230V, TEFC)
|
Images may be generic. Please inquire
|
Your Price:
Discontinued Item.
|
| Applications |
| Motors are specially suited for hot or cold pressure washer applications. These motors are designed using a start and run capacitor for low amperage. |
| |
| Features |
| Low Vibration operation due to dynamically balanced rotor |
|
| Double shielded ball bearings having an operating temperature range of -20F to +350F |
|
| High efficiency, reduced amperage energy savings designs |
|
| Stator coils impregnated with extra heavy varnish system |
|
| High temperature copper magnet wire for high overload capacity |
|
| Manual reset overloads protect against motor overload and automatic resets. |
|
|
Specifications
|
|
Brand
|
Leeson Motors
|
|
Catalog Number
|
120008
|
|
Type
|
Leeson Electric Motor
|
|
Series
|
Pressure Washer
|
|
Model Number
|
M143C17FB2
|
|
HP
|
1
|
|
Frame
|
143
|
|
RPM
|
1740RPM
|
|
Voltage
|
115/208-230V
|
|
Enclosure
|
TEFC
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
Item Number:
120008
Manufacturer:
Leeson
Manufacturer Part No:
120008
|
|
|
