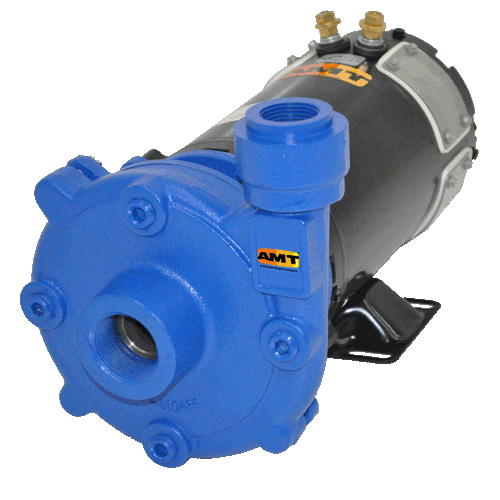

AMT Pumps 12DC-95, 12 Volt DC Washdown Pump (7/8 HP, 12VDC, 1-1/4" Inlet, 1" Outlet, 56 GPM, 35 PSI, 3500 RPM)
| Applications |
| AMT 12 Volt DC Washdown pumps are designed for OEM, chemical processing septic service, pumper and marine applications requiring a DC motor. The motor has a one hour duty rating and is furnished with a stainless steel shaft. This washdown duty pump is available in a variety of construction and seal materials to meet your specifications. Pull-from-rear design for easy servicing without disturbing any piping. Stainless Steel impeller maximizes performance. PUMPS ARE NOT SELF PRIMING AND REQUIRE FLOODED SUCTION. Premium 12 Volt DC washdown duty motors are built to handle washdown and damp/wet environments. The motor features epoxy paint, condensate drains, interior coating to protect against moisture or corrosion, special shaft seals to retard water, 12 Volt DC stud connections with o-ring seals, oversized brushes assuring longer brush life and base mount. UNITS ARE NOT SUBMERSIBLE IN LIQUIDS. |
| |
| Features |
| 300 Series Investment Cast Stainless Steel and Cast Iron with Stainless Steel Impeller Construction |
|
| Discharge Port Rotates in 90 Degree Increments |
|
| (4) Front Drain Plugs |
|
| 7/8 HP 12 Volt DC Premium Washdown Duty Motor for Severe and Damp/Wet Operating Conditions |
|
| 12DC-95 is capable of running with a battery or AC/DC converter, neither come with the pump. |
|
| Model 12DC-95 Superceded model 489G-95 |
|
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
12DC-95
|
|
Type
|
12 VOLT DC HIGH HEAD WASHDOWN PUMPS
|
|
Series
|
STRAIGHT CENTRIFUGAL ELECTRIC DRIVEN PUMPS
|
|
HP
|
7/8
|
|
IN/OUT
|
1-1/4x1
|
|
VAC/60 Hz
|
12 VDC
|
|
CASING
|
Cast Iron
|
|
SHAFT SEAL
|
Buna-N
|
|
IMPELLER
|
Stainless Steel
|
|
SHIP WT
|
57
|
|
OPTIONAL MOUNTING BASE
|
A201-90
|
|
LENGTH
|
15.5"
|
|
WIDTH
|
7.9"
|
|
HEIGHT
|
8.5"
|
|
MAX SOLIDS
|
3/16" Diameter
|
|
MAX FLOW
|
56 GPM
|
|
MAX HEAD
|
80 FT.
|
|
MAX PSI
|
35
|
|
SUCTION
|
1-1/4"
|
|
DISCHARGE
|
1"
|
|
RPM
|
3500
|
|
Old Model #
|
489G-95
|
|
WARRANTY
|
1 Year
|
|
NOTES
|
See Support Documents
|
Item Number:
12DC-95
Manufacturer:
AMT
Manufacturer Part No:
12DC-999-95
|
|
|
