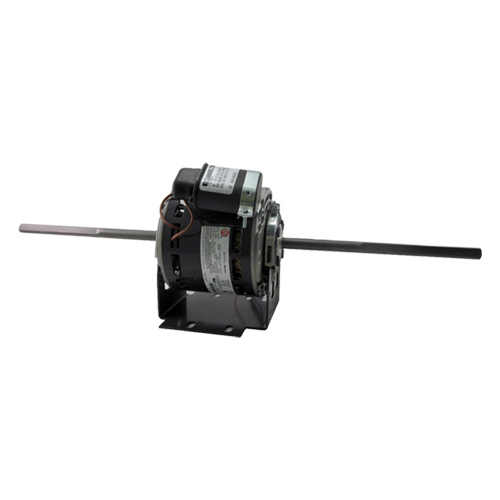

1337 U.S. Motors Single and Double Shaft Direct Drive Fan Motor (1/8 HP, 115 Volts, Single Shaft, 1050 RPM)
|
Applications |
|
Designed to meet manufacturer's requirements for direct drive fans & blowers. |
|
|
|
Features |
|
Sleeve Bearings Have All Angle Thrust System | Continuous Duty, Air Over
|
|
24" Line Leads Unless Otherwise Noted | Automatic Reset Thermal Overload Protector
|
|
Connection Information Furnished in the Nameplate Data | Shaded Pole Design Except Where Noted
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Tech Specs | | Brand | U.S. Motors/Emerson | | Model Number | 1337 | | HP | 1/8 | | RPM | 1050 | | Volts | 115 | | Frame | 42 | | Amps | 7.3 | | Bearings | Slv | | Shaft Length (N) | 5 | | Apx. Wt. (lb) | 13 | | Shell XI | 4.5 | | Total C | 10.4 | | Diameter | 5.0" Diameter | | Shaft | Single | | Mount | Stud or Hub Ring Mount (2.5") | | Enclosure | Open Air Over | | Type | Direct Drive Fan | | | | | | | | | |
Item Number:
1337
Manufacturer:
U.S. Motors
Manufacturer Part No:
1337
|
|
|
