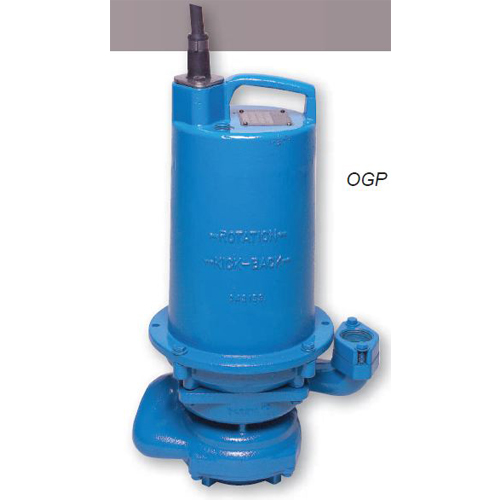

135035 Barnes Grinder Pump (OGP2042L , 2 HP, 480 VOLT, 1 1/4" NPT Discharge, 3450 RPM)
|
Images may be generic. Please inquire
|
Your Price:
Call For Availability
|
|
Applications |
|
THE GRINDER PUMP IS DESIGNED TO
REDUCE DOMESTIC SEWAGE TO A FINELY
GROUND SLURRY. |
|
|
|
Features |
|
Quick disconnect cord |
|
|
Threaded discharge flange |
|
|
Exclusive Slicerator |
|
|
Integral capacitors for start and run |
|
|
Angular contact bearings 100,000 hour L-10 rating |
|
|
Oil filled motor with overload protection |
|
|
Silicon carbide mechanical seal for long life |
|
|
Vortex impellers for solids handling |
|
|
Interstage passage |
|
| Specifications | | Brand | Barnes | | Part Number | 135035 | | Type | Grinder Pump | | Series | Submersible Grinder Pump Series OGP | | Catalog Number | OGP2042L | | HP | 2 | | VOLT | 480 | | PH/Hz | 3 / 60 | | Discharge | 1 1/4" NPT | | RPM | 3450 | | NEMA START CODE | L | | FULL LOAD AMPS | 4.5 | | LOCKED ROTOR AMPS | 22 | | CORD SIZE | 12/4 | | CORD TYPE | SOW | | CORD O.D. .02 (.5) in (mm) | 0.67 (17.00) | | Warranty | 1 Year | | Notes | See Support Documents |
Item Number:
135035
Manufacturer:
Barnes Pumps
Manufacturer Part No:
OGP2042L
|
|
|
