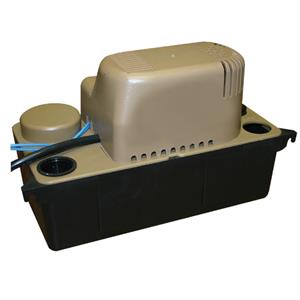

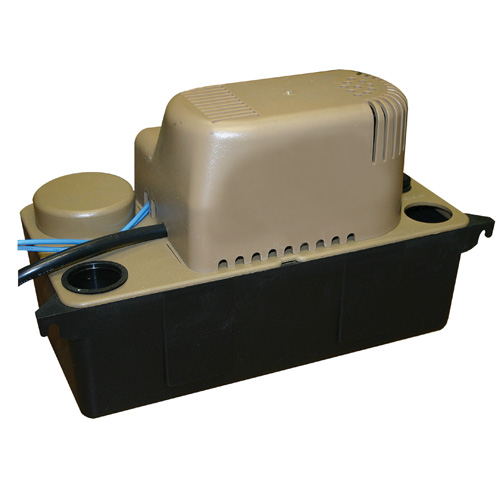

135782 Barnes Condensate Pump (1/50 HP, Single Phase, 60 Hz, 115 Voltage 15 Max Head (Ft.)
|
Images may be generic. Please inquire
|
Your Price:
Call For Availability
|
| Applications |
| Applications Include: High efficiency furnaces, AC equipment, Ice machines, and Drinking fountains Dehumidifiers. |
| |
| Features |
| High impact tank constructed with ABS material |
|
| Three inlet openings |
|
| 3/8" O.D. barbed discharge adapter with built-in check valve (installed on the pump) |
|
| Removeable check valve |
|
| Built-in safety switch (BC-20S only) |
|
| 150F maximum fluid temperature |
|
|
Specifications
|
|
Brand
|
Barnes
|
|
Catalog Number
|
135782
|
|
Type
|
Condensate Pump
|
|
Series
|
BC15
|
|
HP
|
1/50
|
|
Phase
|
Single
|
|
Hz
|
60
|
|
Capacity (US Quart)
|
2
|
|
Inlet NPT
|
1.125
|
|
Discharge Size
|
0.375
|
|
Voltage
|
115
|
|
Full Load Amps
|
1
|
|
Max Head (Ft.)
|
15
|
|
Max Liquid Temperature
|
150F
|
|
Shaft
|
Stainless Steel
|
|
Cord Length (Ft.)
|
6 ft. power cord with ground
|
|
Discharge Connection
|
Barbed and threaded
|
|
Check Valve
|
Removeable
|
|
Warranty
|
1 Year
|
|
Safety Switch
|
No
|
|
Model
|
BC15
|
Item Number:
135782
Manufacturer:
Barnes Pumps
Manufacturer Part No:
BC15
|
|
|
