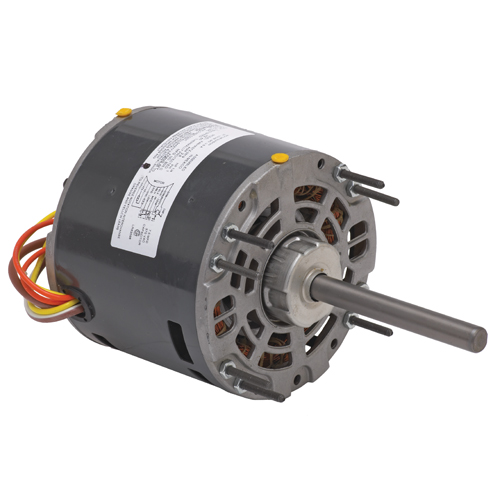

1390 U.S. Motors Permanent Split Cap. Direct Drive Fan Motor (1/4 HP, 115 Volts, 1050/3 RPM)
|
Applications |
|
Designed to meet manufacturer's requirements for use on direct drive fan & blowers |
|
|
|
Features |
|
Reversible Unless Noted | Continuous Duty, Air Over
|
|
Sleeve Bearings Have All Angle Thrust System | 24" Line Leads Unless Otherwise Noted
|
|
Designed for Use with 370V Capacitors | Automatic Reset Thermal Overload Protector
|
|
Connection and Capacitor Information Furnished |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Tech Specs | | Brand | U.S. Motors/Emerson | | Model Number | 1390 | | HP | 1/4 | | RPM | 1050/3 | | Volts | 115 | | Cap MFD | 7.5 | | Amps | 2.8 | | Bearings | Slv | | Shaft Length (N) | 4 | | Apx. Wt. (lb) | 13 | | Shell XI | 4.3 | | Total C | 8.9 | | Diameter | 5.0" Diameter | | Shaft | Single | | Mount | Stud or Hub Ring Mount (2.5") | | Enclosure | Open Air Over | | Capacitor | Permanent Split | | Type | Direct Drive Fan | | | | | | |
Item Number:
1390
Manufacturer:
U.S. Motors
Manufacturer Part No:
1390
|
|
|
