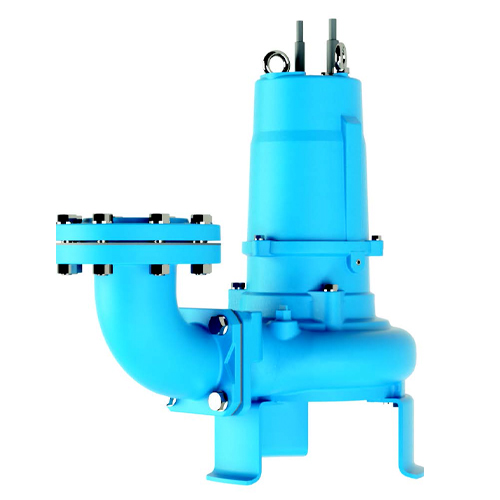

148314 Barnes Pumps SEC Series Submersible Cutter Pump (4SEC3094A, 3 HP, 1750 RPM, 208-230 Voltage, 4 NPT w/ 4 ANSI Class 125 Flange Discharge Elbow)
|
Images may be generic. Please inquire
|
MSRP:
$3,600.00
Your Price:
Call for Pricing
|
| Applications |
| The Barnes SEC Cutter Pump is designed to solve clogging problems in municipal, industrial and commercial applications with light solids content. The pump includes everything you need to install the pump into mutliple installations. Each pump is equipped with a horizontal JIS80 discharge, and sold with a 3 or 4 vertical discharge elbow AND our JIS80 to 4 ANSI flange adapter. |
| |
| Features |
| * Flange adapter not included with 3SEC2092A |
|
| Rugged pump design, constructed with ASTM A-48 Class 30 Cast Iron |
|
| Removable stand and discharge accessories to fit perfectly in freestanding installations or on a variety of guide rail systems |
|
| Air filled motor protected with integral moisture and temperature sensors |
|
| Steel cutting plate and impeller blade provide superior cutting |
|
| Package Features: By providing a single out-of-the box solution, this package will allow for simplified inventory, and no surprises during installation |
|
|
Specifications
|
|
Brand
|
Barnes Pumps
|
|
Catalog Number
|
148314
|
|
Type
|
Submersible Cutter Pumps
|
|
Series
|
SEC Series
|
|
Model Number
|
4SEC3094A
|
|
HP
|
3
|
|
RPM
|
1750
|
|
Voltage
|
208-230
|
|
PH / HZ
|
3/60
|
|
Discharge Elbow
|
4 NPT w/ 4 ANSI Class 125 Flange
|
|
Construction
|
ASTM A-48 Class 30 Cast Iron
|
|
Max Liquid Temp
|
104 Deg. Continuous
|
|
Sensor Cord
|
39' length included
|
|
Power Cord
|
39' length included
|
|
Moisture Sensor
|
Normally Open, Relay Required
|
|
Temperature Sensor
|
Normally Closed, Relay Required
|
|
NEMA Start Code
|
K
|
|
Insul. Class
|
F
|
|
FLA
|
8.9-8.8
|
|
LRA
|
60
|
|
Cord Size
|
14/4
|
|
Cord Type
|
SOW
|
|
CORD O.D. inch
|
.59
|
|
Included Adapters
|
4" Flanged Elbow: Cast Iron A-48, Class 30 4" NPT Adapter: Cast Iron A-48, Class 30 4" ANSI Horizontal Adapter: Cast Iron A-48, Class 30"
|
|
Discharge
|
JIS 80 Horizontal Flange
|
|
Pump Curves
|
See Support Documents
|
Item Number:
148314
Manufacturer:
Barnes Pumps
Manufacturer Part No:
4SEC3094A
|
|
|
