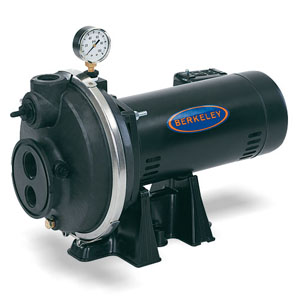

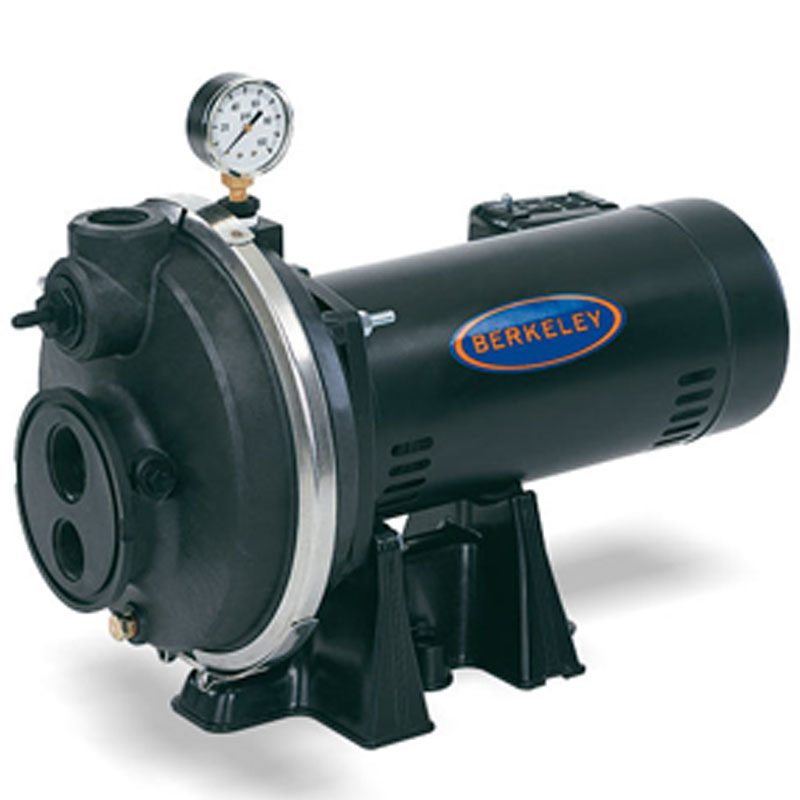

15PLS11C Berkeley Corrosion-Resistant Convertible Deep Well Jet Pump (1-1/2 HP, 1-1/4" Suction, 1" Drive, 1" Discharge, 115/230 Voltage, PL Series)
| Applications |
| Durability and corrosion resistance are built into every PL Series Pump, due to the rugged fiberglass reinforced thermoplastic pump construction. The engineered composite components are lightweight yet extremely resistant to sand and abrasive wear. The non-corrosive design and exceptional strength assure years of troublefree operation. APPLICATIONS: Water systems and sprinkling for homes, farms and cottages |
| |
| Features |
| Superior Rustproof Construction: Pump body is Dura-Glas fiberglass reinforced thermoplasticlightweight, rustproof and exceptionally strong. All components in contact with water are resistant to the corrosive and abrasive forces found in the most aggressive water conditions. |
|
| Precision Diffuser: Multi-port, reinforced polypropylene design primes faster and handles more air. |
|
| Precision-Molded Impeller: Precisionmolded Noryl gives perfect balance and ultra-smoothness for highest performance and efficiency. |
|
| Pressure Regulator and Gauge: Performance-proven, simple, built-in pressure regulator is adjustable for best performance on all deep well installations. Pressure gauge included. |
|
| Shaft Seal: Stainless steel heat sink provides maximum cooling of the mechanical shaft seal. |
|
| Heavy-Duty Motor: Dustproof canopy completely encloses electrical components and provides dust, dirt and insect protection. Ventilating air cannot contaminate vital switching components. Permanently lubricated, heavy-duty ball bearings ensure smooth, quiet operation and extended motor life. |
|
| Easy Serviceability: PL pumps are disassembled by removing the stainless steel clamp. Piping does not have to be disturbed. Seal replacement takes only a few minutes. Control room motor design makes all components easily accessible. |
|
|
Specifications
|
|
Brand
|
Berkeley
|
|
Catalog Number
|
15PLS11C
|
|
Type
|
Corrosion-resistant, convertible deep well jet pump
|
|
Series
|
PL
|
|
HP
|
1-1/2
|
|
Suction
|
1-1/4"
|
|
Drive
|
1"
|
|
Discharge
|
1"
|
|
Voltage
|
115/230
|
|
Pump Body and Seal Plate
|
Dura-Glas
|
|
Impeller
|
Noryl
|
|
Nozzle
|
Noryl
|
|
Venturi
|
Noryl
|
|
O-Ring
|
Buna-N
|
|
Clamp
|
Stainless steel
|
|
Shaft
|
Stainless steel
|
|
Diffuser
|
Reinforced polypropylene with brass wear ring
|
|
Shallow Well Jet
|
Sold separately
|
|
Shallow Well Jet Number
|
PKG 1- 24N
|
|
Suction Ports
|
Suction-over-Drive
|
|
Pressure Switch Setting
|
30-50
|
Item Number:
15PLS11C
Manufacturer:
Berkeley Pumps
Manufacturer Part No:
15PLS11C
|
|
|
