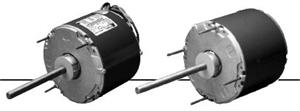

1675 U.S. Motors Permanent Split Capacitor Condenser Fan Motor (1/8 HP, 230 Volts, 1550 RPM)
|
Applications |
|
Designed to meet manufacturer's requirements for condenser cooling fans. |
|
|
|
Features |
|
High Efficiency Economizer Rated (except as noted) | Green Ground Lead
|
|
60 Hz | Reversible Rotation
|
|
Capacitor Mounting Holes in Frame Band | Class B Insulation
|
|
Continuous Duty, Air Over | 30" Leads
|
|
Water Slinger | Double Flats on Shaft
|
|
Designed for use with 370V Capacitors | Enclosed Endshield at Shaft End
|
|
Automatic Reset Thermal Overload Protector | Sleeve Bearings have All Angle Thrust System
|
|
|
|
|
|
|
|
|
|
|
|
|
| Tech Specs | | Brand | U.S. Motors/Emerson | | Model Number | 1675 | | HP | 1/8 | | RPM | 1550 | | Volts | 230 | | Bearings | Slv | | Amps | 0.8 | | Cap. MFD | 5 | | Shaft N | 3 | | Apx. Wt. (lb) | 9 | | Shell XI | 3.8 | | Total C | 6.8 | | Diameter | 5.6" | | Enclosure | Open Dripproof, Air Over | | Mount | Stud - Shaft Up or Horizontal | | Notes | Without Capacitor | | Type | Permanent Split Capacitor Condenser Fan Motor | | OEM Replacement | Trane | | | | | | |
Item Number:
1675
Manufacturer:
U.S. Motors
Manufacturer Part No:
1675
|
|
|
