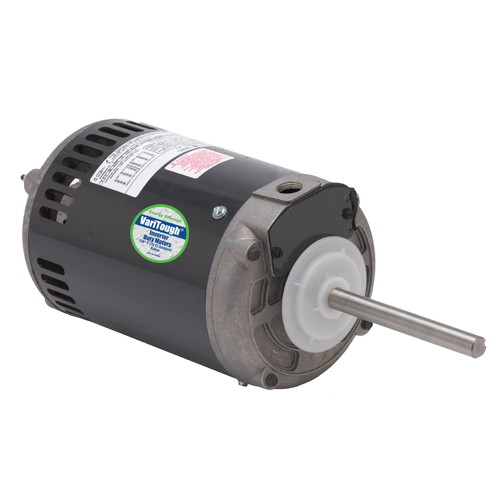

1818V U.S. Motors VariTough Inverter Duty Commercial Condenser Fan Motor (1 HP, 208-230/460 Volts, 1140 RPM)
|
Applications |
|
For use on condenser cooling fans in commercial air conditioning applications, where 3 phase power and variable frequency drives (VFD's) are required.. |
|
|
|
Features |
|
Inverter Duty | Class F Insulation
|
|
Designed to NEMA MG1-Part 31 | Thermostat Temperature Protection
|
|
Open Drip-Proof, Shaft-up Design | Use Kit #21 for Shaft Grounding Option
|
|
Continuous Duty, Air Over | 70C Ambient
|
|
70C Ambient |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Tech Specs | | Brand | U.S. Motors/Emerson | | Model Number | 1818V | | HP | 1 | | RPM | 1140 | | Volts | 208-230/460 | | Frame | 56YZ | | Amps | 4.3-4.3/2.1 | | Shaft Length (N) | 4.3-4.3/2.1 | | Shaft Dia. (U) | 0.625 | | Apx. Wt. (lb) | 33 | | Total Length | 33 | | Motor Mount | Belly Band | | Phase | Three | | Type | VariTough Inverter Duty Condenser Fan Motor | | | | | | | | | | | | | | | | | | |
Item Number:
1818V
Manufacturer:
U.S. Motors
Manufacturer Part No:
J063BJM0181015B
|
|
|
