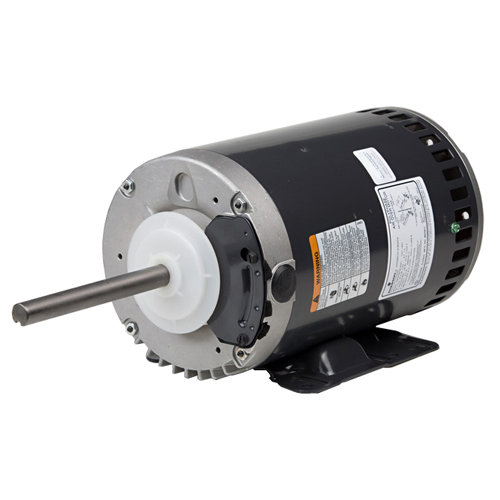

1822H U.S. Motors Commercial Condensor Fan Motor (2 HP, 1140 RPM, 208-230/460 Voltage, Three Phase)
|
Applications |
|
Designed to meet manufacturer's requirements for condenser cooling fans in commercial air conditioning applications where 3 phase power id required. |
|
|
|
Features |
|
158 F (70 C) Ambient Design |
|
| Specifications | | Brand | U.S. Motors | | Catalog Number | 1822H | | Type | Commercial Condenser Fan Motors, Air Over | | Series | MOJAVE Series | | HP | 2 | | RPM | 1140 | | Voltage | 208-230/460 | | Phase | Three | | NEMA Frame | 56Z | | AMPS | 7.6-7.4/3.7 | | Shaft N | 6 | | Total C | 16.8 | | Shaft Dia. | 0.625 | | Enclosure | ODP | | Ship Weight (lbs) | 45 | | Additional | Rigid Base Mount, Flat and Keyway on Shaft | | Symbol | DS-3HAC | | Notes | See Support Documents |
Item Number:
1822H
Manufacturer:
U.S. Motors
Manufacturer Part No:
1822H
|
|
|
