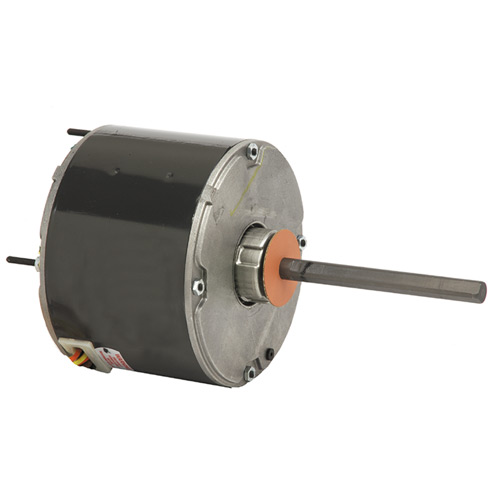

1882 U.S. Motors Permanent Split Capacitor Condenser Fan Motor (1/2 HP, 460 Volts, 825 RPM)
|
Applications |
|
Residential and commercial condensing unit fan motors to meet manufacturer's requirements. |
|
|
|
Features |
|
140F (60C) Ambient Design | Hubless Lead End
|
|
Sleeve Bearings have All Angle Thrust System | Drain Holes Both Ends
|
|
Class B Insulation | Reversible Rotation
|
|
Designed for use with 370V Capacitors | Automatic Reset Thermal Overload Protector
|
|
Extended Studs | Continuous Duty
|
|
30" Leads |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Tech Specs | | Brand | U.S. Motors/Emerson | | Model Number | 1882 | | HP | 1/2 | | RPM | 825 | | Volts | 460 | | Bearings | Ball | | Amps | 1.6 | | Cap. MFD | 10 | | Shaft N | 6 | | Apx. Wt. (lb) | 21 | | Shell XI | 6.3 | | Total C | 12.9 | | OEM Direct Replacement | - | | Diameter | 5.6" | | Enclosure | TEAO | | Type | Permanent Split Capacitor Condenser Fan Motor | | | | | | | | | | | | |
Item Number:
1882
Manufacturer:
U.S. Motors
Manufacturer Part No:
1882
|
|
|
