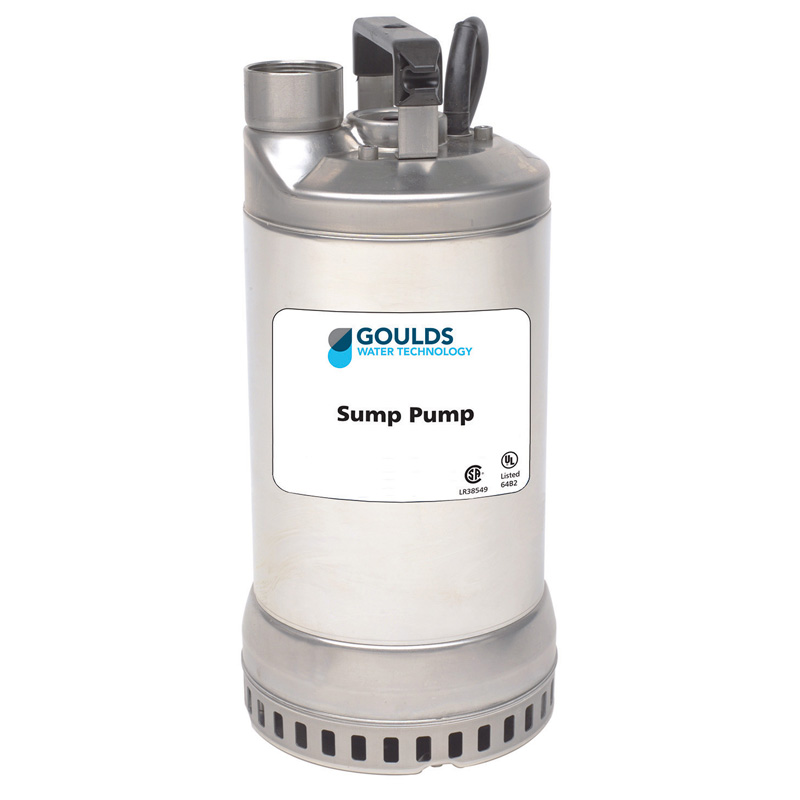

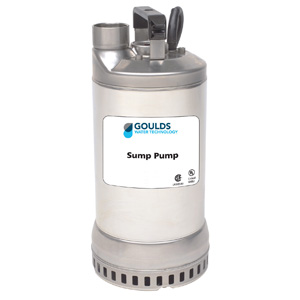

Goulds Pumps 1DW51F4EA Submersible Dewatering (1.5 HP, 3 Phase, 3450 RPM, 460 Volts)
|
Images may be generic. Please inquire
|
Your Price:
Contact Us For a Quote
|
|
Applications |
|
Specifically designed for the following uses: Handling dirty waters, Draining ditches and pits, Excavating in the building trades, Water transfer, Industrial water drainage or transfer |
|
|
|
Features |
|
Impeller: AISI 304 SS open impeller. |
|
|
Casing: AISI 304 SS. |
|
|
Diffuser Plate: AISI 304 SS with
Polyurethane coating for maximum resistance
to abrasion. |
|
|
Mechanical Seal: Silicon carbide sealing
faces, all metal components of AISI type 300
stainless steel running in protected oil
chamber. |
|
|
Elastomers: BUNA-N. |
|
|
Shaft: AISI type 304 stainless steel high
strength pump shaft with keyed and locking
cap screw impeller fastening |
|
|
Motor: Air filled class F insulated design for
continuous use. |
|
|
Designed for Continuous Operation:
Pump ratings are within the motors working
limits and can be operated continuously
without damage. |
|
|
Bearings: Upper and lower heavy duty ball
bearing construction. |
|
|
|
|
|
|
|
| Tech Specs | | Brand | Goulds Pumps | | Model Number | 1DW51F4EA | | HP | 1.5 HP | | Volts | 460 | | Phase | 3 | | Max Amps. | 2.7 | | RPM | 3450 | | Weight (lbs.) | 37 | | Discharge Size | 1 1/2" NPT | | Max Solids | 3/8" spherical | | Mechanical Seal | Silicon Carbide Rotary/Silicon | | Max Submergence | 23' | | Cord Length | 20' | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | |
Item Number:
1DW51F4EA
Manufacturer:
Goulds Pumps
Manufacturer Part No:
1DW51F4EA
|
|
|
