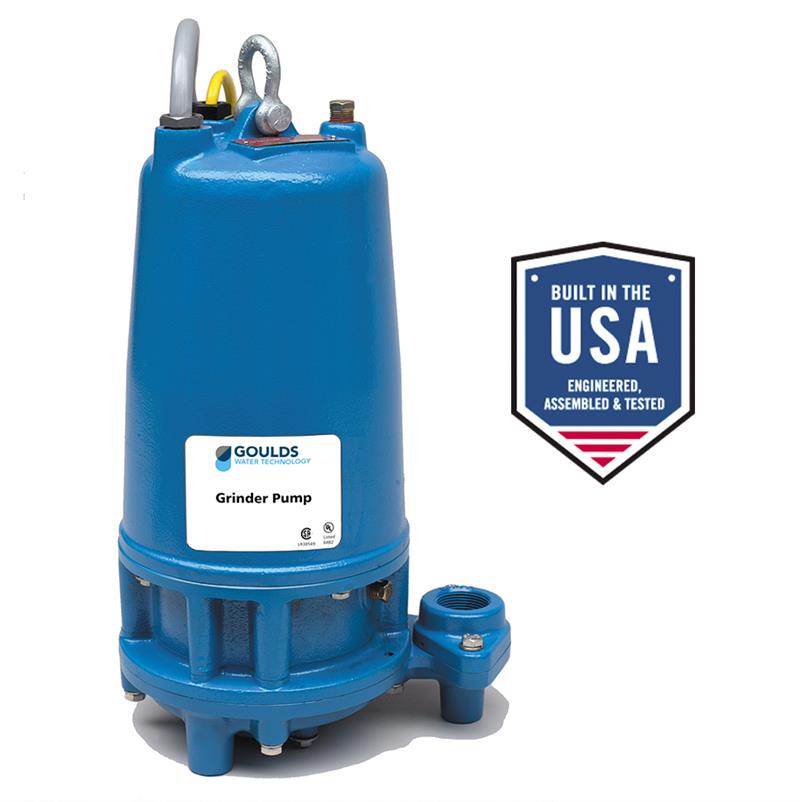

Goulds Pumps 1GD51G5AA Submersible Grinder Pump (2 HP, 575 VOLTS, 3 PHASE)
|
Images may be generic. Please inquire
|
Your Price:
Contact Us For a Quote
|
| Applications | | Designed for high head sewage applications where a gravity system is not practical Ideal for pressure sewage systems
| | | | Features | | Silicon bronze, multi-vane semi-open impeller with pump-out vanes for mechanical seal protection; Heavy duty cast iron, volute type casing for maximum efficiency; Dual Mechanical Seals; Optional Seal Sensor Cord located in oil-filled chamber; Stainless Steel Shaft and Fasteners
| | Tech Specs | | Brand | Goulds | | Model Number | 1GD51G5AA | | HP | 2 | | PHASE | 3 | | VOLTS | 575 | | RPM | 3450 | | MAX AMPS | 4.8 | | LOCKED ROTOR AMPS | 14 | | KVA CODE | J | | Apx. Wt. (lb) | 105 | | FULL LOAD EFFICIENCY | 83.2 | | RESISTANCE START | NA | | RESISTANCE LINE-LINE | 18 | | POWER CORD | 14/4 STOW 20' LONG | | DISCHARGE FLANGE | 1 1/4" NPT | | MAX SOLIDS | 3" | | TYPE | Submersible Grinder Pump | | Notes | See Product Literature | | | | | | |
Item Number:
1GD51G5AA
Manufacturer:
Goulds Pumps
Manufacturer Part No:
1GD51G5AA
|
|
|
