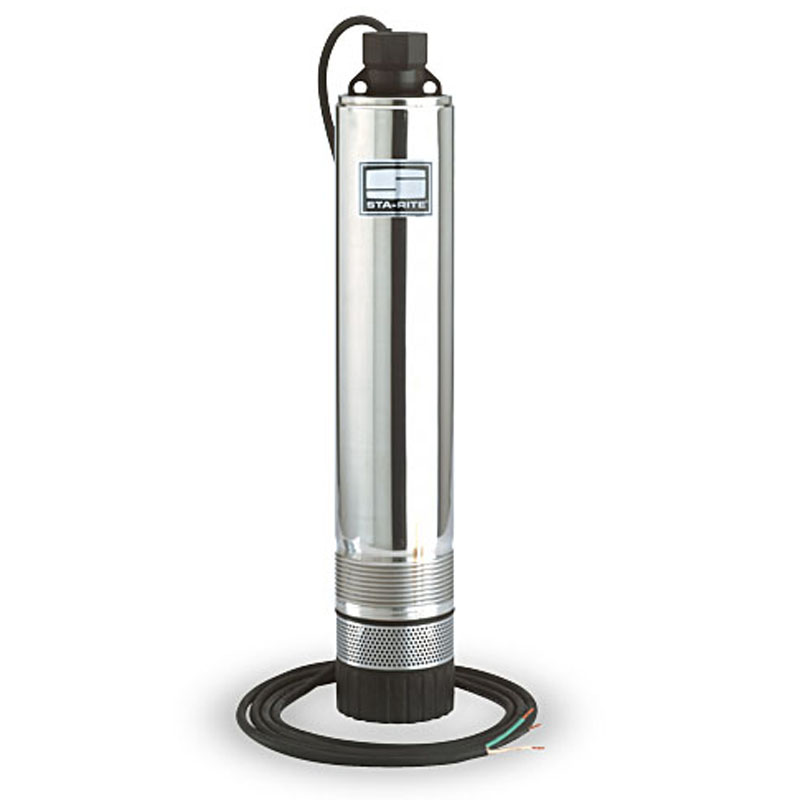

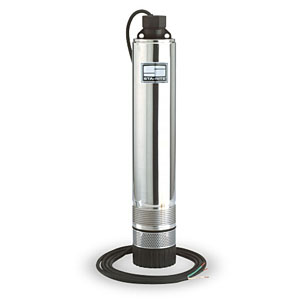

20DOM05121+1-01 Sta-Rite 4" Multi-Stage Submersible Effluent Pump (1/2 HP, 20 GPM, 115 Volts, 10 Cord Length, S.T.E.P. Plus D Series)
| Applications |
| The S.T.E.P. Plus D Series 4" submersible pump series in 10, 20 and 30 GPM models dominates with superior draw-down capability. Sold & proven in aerobic & filtered effluent service applications. APPLICATIONS: Clean and Gray Water for residential, commercial, and agricultural use. |
| |
| Features |
| Cooler and quieter operation eliminates expensive flow inducer sleeves |
|
| UL, CSA Listed |
|
| Stainless steel and composite construction |
|
| Proven SignaSeal staging |
|
| Exclusive STA-RITE dry-run capability |
|
| Enclosed and self-lubricated Nylatron shaft-bearing resists wear from abrasives |
|
| Heavy 7/16 (12mm) positive drive 300 Series stainless steel hexagonal shaft |
|
| Stainless steel intake screen allows for .080 solids |
|
|
Specifications
|
|
Brand
|
Sta-Rite
|
|
Catalog Number
|
20DOM05121+1-01
|
|
Type
|
4" Multi-Stage Submersible Effluent Pump, Stainless Steel
|
|
Series
|
S.T.E.P. Plus D
|
|
HP
|
1/2
|
|
Max. Load Amps
|
10.6
|
|
GPM
|
20
|
|
Volts
|
115
|
|
Phases / Cycles
|
1/60
|
|
Cord Length
|
10
|
|
Shell
|
Stainless steel (300 grade)
|
|
Discharge
|
1-1/4
|
|
Discharge Bearing
|
Nylatron
|
|
Impellers
|
Acetal
|
|
Diffusers
|
Polycarbonate
|
Item Number:
20DOM05121+1-01
Manufacturer:
Sta-Rite Pumps
Manufacturer Part No:
20DOM05121+1-01
|
|
|
