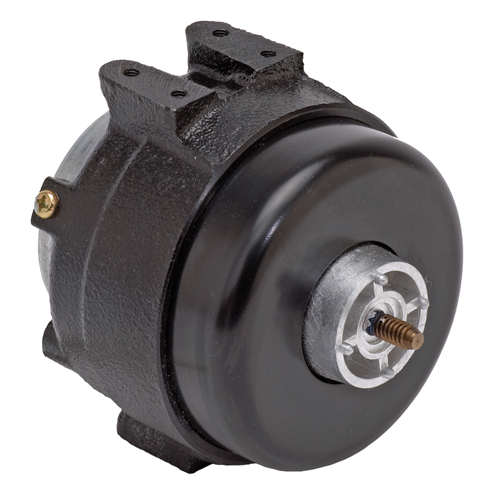

2102 U.S. Motors Shaded Pole Unit Bearing Fan Motor (2.5W HP, 115 Volts, 1550 RPM)
|
Applications |
|
Evaporator or condenser fan motors to meet manufacturer's requirements for refrigerated display cases and vending machines. |
|
|
|
Features |
|
Permanently lubricated bearings | 6W & Under Are 60/50 Hertz Rated
|
|
Individually boxed | Suitable For All Angle Operation
|
|
Impedance protected | 24" Cord With Molded Strain Relief
|
|
Cast Iron Housing | Includes vibration dampener hub washer, speed nut, 4 mounting screws, speed nut, 4 mounting screws
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Tech Specs | | Brand | U.S. Motors/Emerson | | Model Number | 2102 | | HP | 2.5W | | RPM | 1550 | | Volts | 115 | | Amps | 0.3 | | Shaft Rotation | CWLE | | Total A | 3.8 | | Total B | 3.4 | | Apx. Wt. (lb) | 3 | | Dia. C | 3.6 | | Shaft Dia. & Length | 1/4 x 20THD x 0.5 | | Industry Number | 5111 | | Enclosure | Totally Enclosed | | Type | Shaded Pole Unit Bearing Fan Motor | | | | | | | | | | | | | | | |
Item Number:
2102
Manufacturer:
U.S. Motors
Manufacturer Part No:
2102
|
|
|
