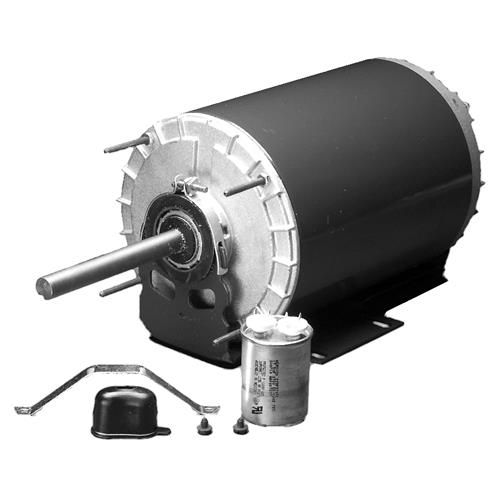

2193 U.S. Motors Perm. Split Cap. Commercial Condenser Fan Motor (3/4 HP, 208-230/460V)
| Applications |
| For use on condenser cooling fans in commercial air conditioning applications. |
| |
| Features |
| • Capacitor and Outlet Box Included, unless noted |
• 40C Ambient |
| • Reversible Rotation |
• Dual Voltage |
| • Double-Sealed Ball Bearings |
• Class B Insulation |
| • Continuous Duty, Air Over |
• Automatic Reset Thermal Overload Protector |
|
|
|
Tech Specs
|
|
Brand
|
U.S. Motors/Emerson
|
|
Model Number
|
2193
|
|
HP
|
3/4
|
|
RPM
|
1075
|
|
Volts
|
208-230/460
|
|
Bearings
|
Ball
|
|
Amps
|
4.8/2.5
|
|
Cap. MFD
|
30
|
|
Shaft N
|
4.1
|
|
Apx. Wt. (lb)
|
41
|
|
Shell XI
|
7.8
|
|
Total C
|
13.1
|
|
Diameter
|
6.3" Diameter
|
|
Stud YM
|
--
|
|
Mount
|
Resilient Base
|
|
Type
|
Permanent Split Capacitor Commercial Condenser Fan Motor
|
|
Replacement For:
|
Model # K63HXTPF-4856 |
Item Number:
2193
Manufacturer:
U.S. Motors
Manufacturer Part No:
2193
|
|
|
