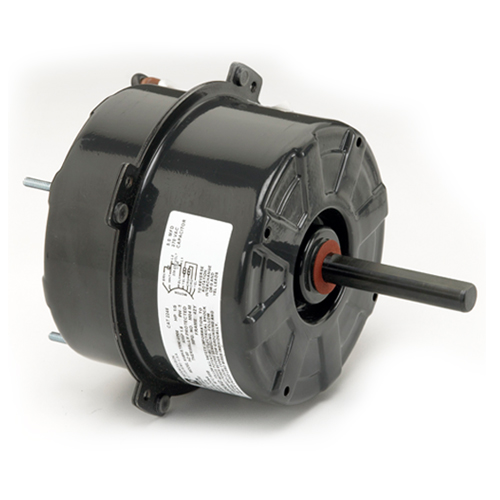

2249 U.S. Motors Permanent Split Capacitor Condenser Fan Motor (1/8 HP, 208-230 Volts, 1075 RPM)
| Applications |
| Designed to meet manufacturer's requirements for fans & blowers. |
| |
| Features |
| Four 8-32 x 3/4 Stud Extensions At Each End |
12 Leads |
| Ball Bearings Have All Angle Thrust System |
Automatic Reset Thermal Overload Protector |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Tech Specs
|
|
Brand
|
U.S. Motors/Emerson
|
|
Model Number
|
2249
|
|
HP
|
1/8
|
|
RPM
|
1075
|
|
Volts
|
208-230
|
|
Bearings
|
SAB
|
|
Amps
|
0.9
|
|
Cap. MFD
|
5
|
|
Shaft N
|
2.7
|
|
Apx. Wt. (lb)
|
10
|
|
Shell XI
|
4.1
|
|
Total C
|
6.8
|
|
OEM Direct Replacement
|
-
|
|
Enclosure
|
TEAO
|
|
Type
|
"Clam Shell" Single Speed, Stud Mount, Without Capacitor (Fig A)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Item Number:
2249
Manufacturer:
U.S. Motors
Manufacturer Part No:
2249
|
|
|
