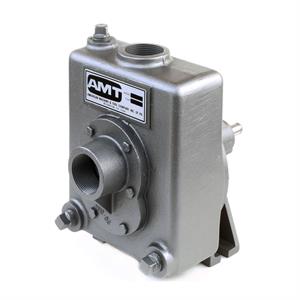

AMT Pumps 2761-99, 2" Stainless Steel Centrifugal Pedestal Pump (2" NPT Suction and Discharge, 3/16" x 1-7/8" Keyway, 2.1" Shaft Length, 120 GPM)
| Applications |
| AMT Self-Priming Centrifugal Pedestal pumps are designed for a wide range of industrial, agricultural and commercial applications. Dual volute design reduces radial load on bearings and motor. Heavy duty cast iron construction with Buna-N seals or stainless steel with Viton seals. Pumps are fitted with a self-cleaning, semiopen impeller and are coupled to a heavy duty cast iron bearing housing with a CNC machined keyed shaft extension and sealed ball bearings. The pump has been designed for either direct connection or belt drive. The maximum recommended RPM is 4,000. |
| |
| Features |
| Cast Iron & Stainless Steel Construction |
|
| Maximum Temperature:Buna-N: 180 F, Viton: 200 F |
|
| Solids Handling to 3/8" Diameter |
|
| Built-In Check Valve on 1-1/2" & 2" Models |
|
| Self-priming up to 20 Ft. @ 3450 RPM |
|
| Dual Volute Design Reduces Radial Load on Motor |
|
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
2761-99
|
|
Type
|
Pedestal Pumps
|
|
Series
|
Self-Priming Centrifugal Pedestal Pumps
|
|
Curve
|
C
|
|
SUC
|
2" NPT
|
|
DIS
|
2" NPT
|
|
Keyway
|
3/16" x 1-7/8"
|
|
Shaft Diameter
|
3/4"
|
|
Shaft Length
|
2.1"
|
|
Max GPM
|
120
|
|
Max Total Head
|
95 FT
|
|
Solid Handling
|
3/8"
|
|
Minimum BHP Required @ 3450 RPM
|
3
|
|
Construction Material
|
Stainless Steel
|
|
Impeller
|
Stainless Steel
|
|
Ship Wt. (Lbs.)
|
48
|
|
Warranty
|
1 Year
|
|
Motor
|
NOT INCLUDED - Pump End Only
|
|
Notes
|
See Support Documents
|
|
Pump Curves
|
Click on the link below
|
Item Number:
2761-99
Manufacturer:
AMT
Manufacturer Part No:
2761-999-99
|
|
|
