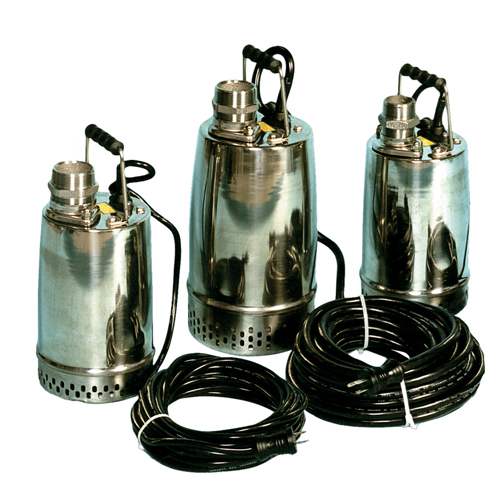

AMT Pumps 02X11 Stainless Steel Submersible Pump (1 HP, 2" Discharge,115V, 10 FLA, 50' Cord, SS Construction, Cast Iron Impeller)
| Applications |
| Slim-design, light weight CSA listed submersibles feature top discharge as well as cast-iron impellers, 304 stainless steel casing, motor housing, shaft and hardware. Pump motor is thermal overload protected. An optional piggyback mercury-free float switch is available. Float Switches: The mercury free liquid level control has a piggyback plug molded to the cord allowing the pump motor to plug into the cord and then plug the entire assembly into a standard grounded outlet. |
| |
| Features |
| Submersible Pump Standard Features |
| Light Weight Slim Design |
| Motors Protected by Overload or Thermal Breaker |
| Lower Seal - Silicon-Carbide, Viton; Upper Seal - Carbon Ceramic, Viton |
| Oil Lubricated Seals |
| Cast Iron Impeller, Top & Pump End |
| 304 Stainless Steel Casing, Motor Housing, Shaft and Hardware |
| Long Power Cables:- 1/3 & 1/2 HP is 30 Feet in Length, -1HP is 50 Feet in Length |
| Optional Piggyback Mercury-free Float Switches |
| Nitrile O-rings |
| Max Temperature 104 F |
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
2X11
|
|
Series
|
Submersible Pumps
|
|
Basic Construction
|
Stainless Steel/ Cast Iron
|
|
Casing
|
304 Stainless Steel |
|
Impeller
|
Cast Iron
|
|
Discharge
|
2"
|
|
HP
|
1
|
|
Voltage
|
115
|
|
Full Load Amps
|
10
|
|
Cable Length
|
50'
|
|
Width
|
7.5"
|
|
Height
|
17.1"
|
|
Ship Wt. (Lbs.)
|
50
|
|
Description/Type
|
Submersible Pump
|
|
NPT Port Size
|
2"
|
|
Basic Construction
|
Stainless Steel/Cast Iron
|
|
Full Load Amps
|
14
|
|
Warranty
|
1 Year
|
|
Optional Piggyback Float 30 Ft. 16 GA Cord
|
Model 55-930
|
|
Optional Piggyback Float 50 Ft. 14 GA Cord
|
Model 55-950
|
|
Notes
|
See Support Documents
|
Item Number:
02X11
Manufacturer:
AMT
Manufacturer Part No:
02X11
MSRP: $169.00
Your Price: $109.74
You Save: $59.26 (35 %)
|
MSRP: $268.00
Your Price: $174.03
You Save: $93.97 (35 %)
055-951 AMT 115V/20Amp 50 ft. 14 gauge cord
| |
|
|
|
