AMT Pumps 02XH5 Stainless Steel Submersible Pump (1/2 HP, 2" Discharge, 115V, 6FLA, 30' Cord, SS Construction, Cast iron impeller)
| Applications |

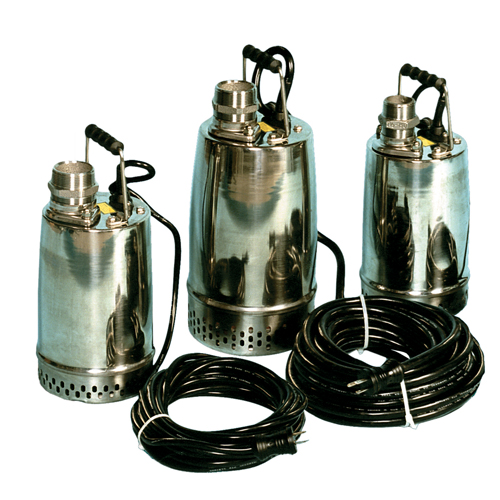

| Slim-design, light weight CSA listed submersibles feature top discharge as well as cast-iron impellers, 304 stainless steel casing, motor housing, shaft and hardware. Pump motor is thermal overload protected. An optional piggyback mercury-free float switch is available. Float Switches: The mercury free liquid level control has a piggyback plug molded to the cord allowing the pump motor to plug into the cord and then plug the entire assembly into a standard grounded outlet. |
| |
| Features |
| Submersible Pump Standard Features |
| Light Weight Slim Design |
| Motors Protected by Overload or Thermal Breaker |
| Lower Seal - Silicon-Carbide, Viton; Upper Seal - Carbon Ceramic, Viton |
| Oil Lubricated Seals |
| Cast Iron Impeller, Top & Pump End |
| 304 Stainless Steel Casing, Motor Housing, Shaft and Hardware |
| Long Power Cables:- 1/3 & 1/2 HP is 30 Feet in Length, -1HP is 50 Feet in Length |
| Optional Piggyback Mercury-free Float Switches |
| Nitrile O-rings |
| Max Temperature 104 F |
| *Float Switch NOT INCLUDED - See Below for More Details |
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
2XH5
|
|
Type
|
Submersible Pumps
|
|
Basic Construction
|
Stainless Steel/ Cast Iron
|
| Discharge |
2"
|
|
HP
|
1/2
|
|
Voltage
|
115
|
|
Full Load Amps
|
6
|
|
Cable Length
|
30'
|
|
Width
|
6.6"
|
|
Height
|
14.5"
|
|
Weight
|
31 lbs
|
|
Description/Type
|
Submersible Pump
|
|
NPT Port Size
|
2"
|
|
Housing
|
304 Stainless Steel
|
|
Impeller
|
Cast Iron |
|
Full Load Amps
|
6
|
|
Warranty
|
1 Year
|
|
Optional Piggyback Float 30 Ft. 16 GA Cord
|
Model 55-930
|
|
Optional Piggyback Float 50 Ft. 14 GA Cord
|
Model 55-950
|
|
Notes
|
See Support Documents
|
Item Number:
02XH5
Manufacturer:
AMT
Manufacturer Part No:
02XH5
