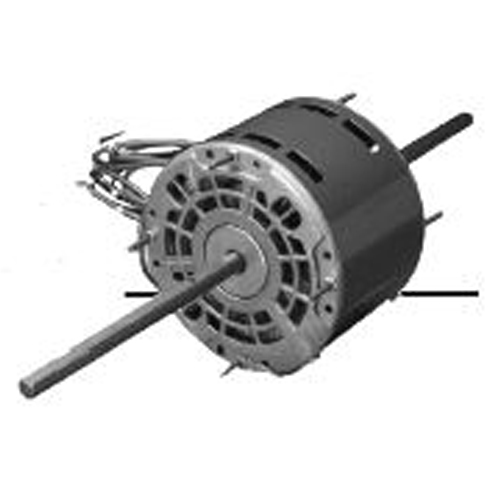

3135 U.S. Motors Double Shaft Fan and Blower Motor (1/3 HP, 230 Volts, 1075/3 RPM/Spds.)
|
Applications |
|
Design to meet manufacturer's requirements for blowers utilizing a double-shaft motor. |
|
|
|
Features |
|
Automatic Reset Thermal Overload Protector | Mounting Holes in Shell for Mounting Capacitor
|
|
CCW Rotation Lead End | 20" Leads
|
|
Sleeve Bearings Have All Angle Thrust System | Class B Insulation
|
|
Continuous Duty, Air Over | Open Dripproof, Air Over, Except Where Noted
|
|
Designed for Use with 370V Capacitors |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Tech Specs | | Brand | U.S. Motors/Emerson | | Model Number | 3135 | | HP | 1/3 | | RPM/Spds. | 1075/3 | | Volts | 230 | | Cap MFD | 5 | | Amps | 2.5 | | Bearings | Slv | | Shaft Length (N) | 8 | | Apx. Wt. (lb) | 14 | | Shell XI | 4.6 | | Total C | 21.1 | | Shaft XN | 8 | | Speed | Three | | Mount | Hub or Stud Mount | | Enclosure | Open Dripproof, Air Over | | Notes | Without Capacitor and Mounting Kit | | Diameter | 5.6" | | Type | Double Shaft Fan & Blower Motor | | | |
Item Number:
3135
Manufacturer:
U.S. Motors
Manufacturer Part No:
3135
|
|
|
