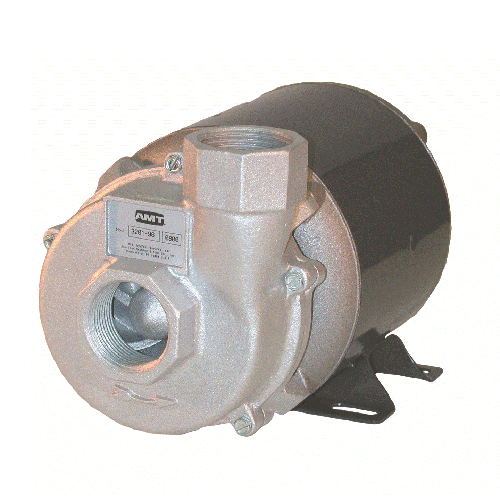

AMT Pumps 3201-96 Laundry Tray Pump (1/4 HP, 1 Phase, 115 V, ODP, 1-1/4" Suction and Discharge, 4.5 FLA)
| Applications |
| The AMT Laundry Tray pump is a single stage, multi-vane open impeller unit. It is designed as a laundry tray pump, but can be used for most gravity fed general service pumping applications. The 1/8" diameter solids handling open impeller design makes it particularly adaptable to dirty, as well as clean liquids and is inherently resistant to clogging. The pump is constructed of cast aluminum and features 1-1/4" NPT suction and discharge ports. Pump is powered by a 1725 RPM, 115 VAC, 1/4 HP motor. |
| |
| Features |
| Cast Aluminum Construction |
|
| Buna-N Mechanical Seal and O-ring |
|
| 1-1/4" NPT Suction and Discharge Ports |
|
| Maximum Temperature 180 F |
|
| Self-cleaning, Semi-open Impeller |
|
| 1725 RPM 1/4 HP 115 VAC Single Phase, Open Drip Proof (ODP) 48Z Frame Motor |
|
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
3201-96
|
|
Type
|
Laundry Tray Pump
|
|
Series
|
General Purpose Laundry Tray Pump
|
|
HP
|
1/4
|
|
Phase
|
1
|
| Enclosure |
ODP
|
|
Voltage
|
115
|
|
Full Load Amps
|
4.5
|
|
Suction
|
1 1/4" NPT
|
|
Discharge
|
1 1/4" NPT
|
|
Length
|
9.2"
|
|
Width
|
5.6"
|
|
Height
|
6.4"
|
|
Ship Wt. (Lbs.)
|
13
|
|
Power Cord
|
Not Included |
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
Item Number:
3201-96
Manufacturer:
AMT
Manufacturer Part No:
3201-999-96
|
|
|
