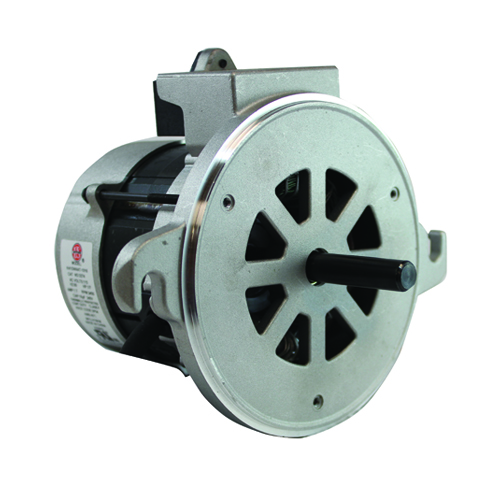

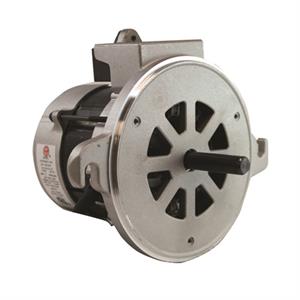

3274 U.S. Motors Oil Burner Motor (1/7 HP, 3450 RPM, 115 Voltage, 48M NEMA Frame, 1.7 Amps)
| Applications |
| Designed to meet manufacturers requirements for oil burners. |
| |
| Features |
| 20" Leads, Located At 3 Oclock Viewed From End Opposite Shaft |
|
| 1.0 Service Factor |
|
| Reversible Rotation, Except As Noted |
|
| Manual Reset Thermal Overload Protector |
|
| 56N Frame Has 2 Holes And Screws for Mounting Outlet Box |
|
| 56N Flange Is Enclosed, 48M And 48N Flange Are Ventilated |
|
| Bearings Have All Angle Thrust System |
|
| Totally Enclosed When Mounted |
|
|
Specifications
|
|
Brand
|
U.S. Motors
|
|
Catalog Number
|
3274
|
|
Type
|
Oil Burner Motor
|
|
HP
|
1/7
|
|
RPM
|
3450
|
|
Voltage
|
115
|
|
Bearings
|
Ball
|
|
NEMA Frame
|
48M
|
|
Amps
|
1.7
|
|
Shaft N
|
2
|
|
Protector
|
Auto
|
|
Total C
|
6.7
|
|
Ship Wt.
|
12
|
|
Symbol
|
DS-3HAC
|
|
Notes
|
See Support Documents
|
Item Number:
3274
Manufacturer:
U.S. Motors
Manufacturer Part No:
3274
|
|
|
