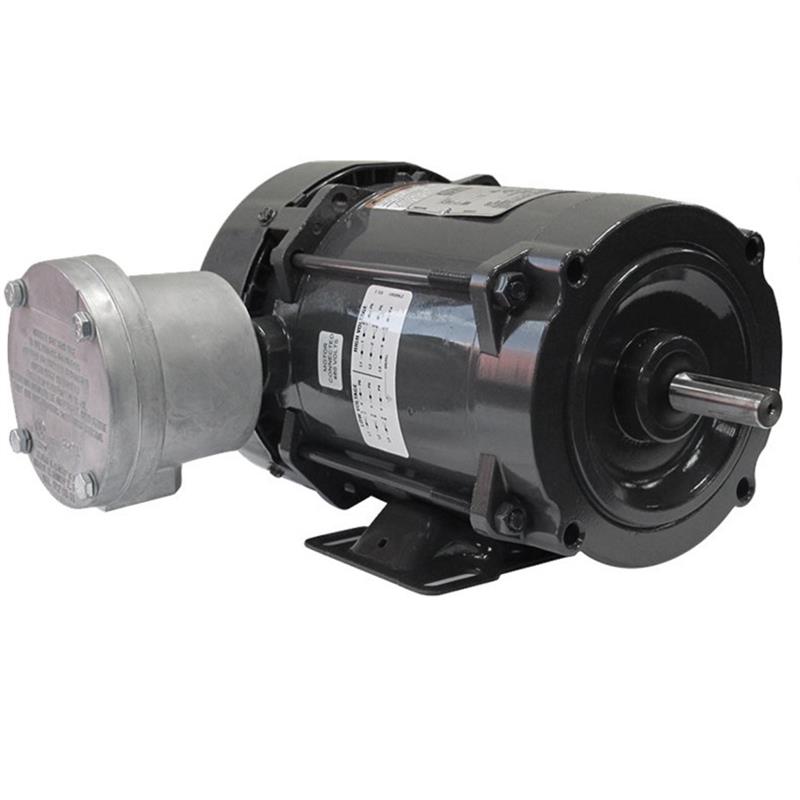

.3318XS1B56 WEG Explosion Proof Motor (0.33 HP, 1800 RPM, 1 Phase, 56 Frame, 115/208-230 Voltage, Explosion Proof)
| Applications |
| WEG Explosion Proof motors are suitable for applications requiring UL or CSA certification for hazardous locations. |
| |
| Features |
| Class F insulation (Impregnation Resin and Magnet wire are class H) |
|
| F1 Mounted (Cast Iron frames are F2 convertible) |
|
| Stainless Steel Nameplate - Laser etched with high contrast background |
|
| All frames with regreasable ball bearings (Frames 364T and up) |
|
| CSA Approved - File LR50962 |
|
| UL Listed - File E87848 |
|
|
Specifications
|
|
Brand
|
WEG
|
|
Catalog Number
|
.3318XS1B56
|
|
Type
|
Explosion Proof
|
|
HP
|
0.33
|
|
KW
|
0.25
|
|
RPM
|
1800
|
|
Phase
|
1
|
|
Service Factor
|
1
|
|
Frame
|
56
|
|
Voltage
|
115/208-230
|
|
Enclosure
|
Explosion Proof
|
|
Mount
|
Foot Mount
|
|
Full Load Amps
|
3
|
|
Warranty
|
1 Year
|
Item Number:
.3318XS1B56
Manufacturer:
WEG
Manufacturer Part No:
.3318XS1B56
|
|
|
