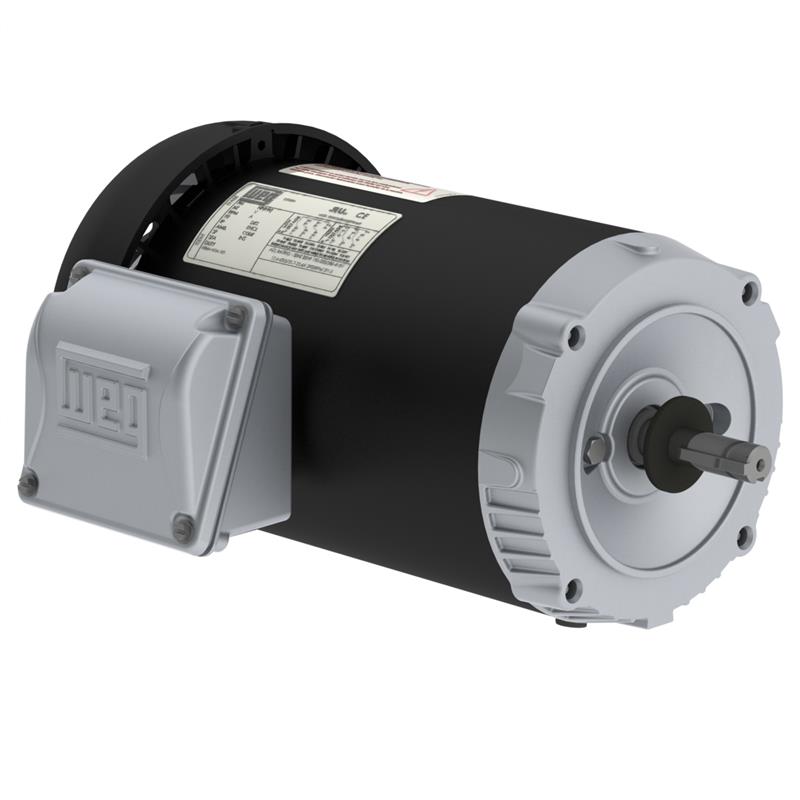

.3336ES3EJPR56J-S WEG Motor, Jet Pump (0.33 HP, B56 FRAME, 208-230/460 V, THREE PHASE, TEFC , 3465 RPM)
| Applications |
| Commercial and Industrial pumps, Residential pumps(Jacuzzis, pools, hot tubs), Jet pump motor system, Hydraulic pumps |
| |
| Features |
| Jet Pump Motor, 3-Phase, Rolled Steel, Standard Efficiency, TEFC |
|
Tech Specs
|
|
Brand
|
WEG Motors
|
|
Model Number
|
.3336ES3EJPR56J-S
|
|
HP
|
0.33 HP
|
|
RPM
|
3465
|
|
FRAME
|
B56
|
|
VOLTAGE
|
208-230/460 V
|
|
PHASE
|
THREE
|
|
FREQUENCY
|
60 Hz
|
|
ENCLOSURE
|
TEFC
|
|
APPROXIMATE WEIGHT (lb)
|
21
|
|
FEET
|
NO
|
|
TERMINAL BOX
|
LEFT
|
|
FLANGE
|
FC-149
|
|
RATED CURRENT
|
1.22-1.20/0.600 A
|
|
LOCKED ROTOR CURRENT IL IN
|
8
|
|
LOCKED ROTOR CURRENT
|
9.60/4.80 A
|
|
LOCKED ROTOR TORQUE
|
5
|
|
BREAKDOWN TORQUE
|
4
|
|
EFFICIENCY 50
|
52.5
|
|
EFFICIENCY 75
|
61
|
|
EFFICIENCY 100
|
66
|
|
POWER FACTOR 50
|
0.61
|
|
POWER FACTOR 75
|
0.71
|
|
POWER FACTOR 100
|
0.78
|
|
SERVICE FACTOR
|
1.15 (1.00 at 208V)
|
|
INERTIA KGM2
|
0.00100 kgm
|
|
INERTIA SQ FT
|
0.02373 sq.ft.
|
|
LOCKED ROTOR TIME
|
15 s
|
|
NOISE LEVEL
|
-
|
|
ALTITUDE
|
1000
|
|
DUTY CYCLE
|
S1
|
|
AMBIENT TEMPERATURE
|
-20C - +40C
|
|
DEGREE OF PROTECTION
|
IP55
|
|
NO-LOAD CURRENT
|
0.780/0.390 A
|
|
INSULATION CLASS
|
F
|
|
FULL LOAD TORQUE NM
|
0.669 Nm
|
|
FULL LOAD TORQUE FT
|
0.493 .ft
|
|
SLIP
|
0.0375
|
|
DESIGN
|
A
|
|
TEMPERATURE RISE
|
80 K
|
|
BEARINGS D E
|
6203 2RS
|
|
BEARINGS N D E
|
6202 2RS
|
|
REGREASING INTERVAL D E
|
-
|
|
REGREASING INTERVAL N D E
|
-
|
|
GREASE AMOUNT D E
|
-
|
|
GREASE AMOUNT N D E
|
-
|
|
|
|
|
|
|
Item Number:
.3336ES3EJPR56J-S
Manufacturer:
WEG
Manufacturer Part No:
.3336ES3EJPR56J-S
|
|
|
