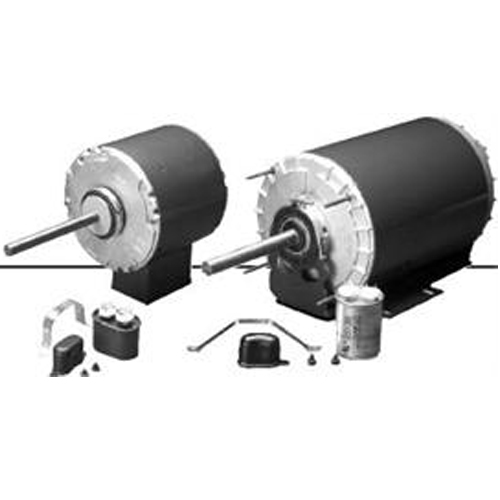

3565 U.S. Motors Perm. Split Cap. Commercial Condenser Fan Motor (1 HP, 208-230 Volts, 1075 RPM)
|
Applications |
|
For use on condenser cooling fans in commercial air conditioning applications. |
|
|
|
Features |
|
Capacitor and Outlet Box Included, unless noted | 40C Ambient
|
|
Reversible Rotation | Dual Voltage
|
|
Double-Sealed Ball Bearings | Class B Insulation
|
|
Continuous Duty, Air Over | Automatic Reset Thermal Overload Protector
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Tech Specs | | Brand | U.S. Motors/Emerson | | Model Number | 3565 | | HP | 1 | | RPM | 1075 | | Volts | 208-230 | | Bearings | Ball | | Amps | 5.2 | | Cap. MFD | 17.5 | | Shaft N | 6 | | Apx. Wt. (lb) | 30 | | Shell XI | 6.5 | | Total C | 13.9 | | Diameter | 6.3" Diameter | | Stud YM | 1.5 | | Mount | All Angle Mounting, Hub or Stud Mount (4) ( 5/8" shaft) | | Type | Permanent Split Capacitor Commercial Condenser Fan Motor | | | | | OEM Replacement | - | | | | | | |
Item Number:
3565
Manufacturer:
U.S. Motors
Manufacturer Part No:
3565
|
|
|
