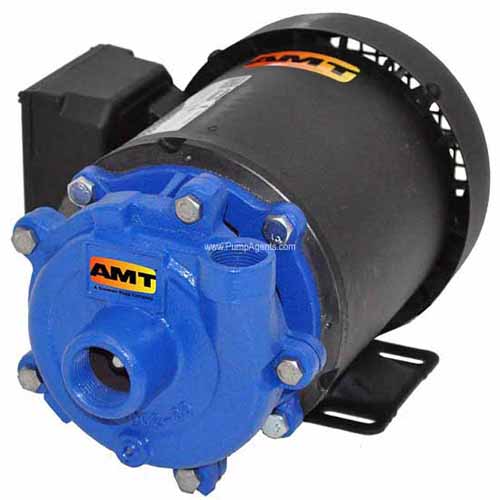

AMT Pumps 368C-95 Straight Centrifugal Pump (1/2 HP, 3 PH, 230/460V)
| Applications |
| AMT Solids Handling End Suction Centrifugal pumps are designed for continuous-duty low pressure OEM, Industrial/Commercial and general service applications including circulation, chemical processing, liquid transfer, dirty water and cooling. |
| |
| Features |
| Stainless Steel, Bronze and Cast Iron Construction |
QSP - Quick Ship Pump for Many Models |
| Buna-N or Viton Mechanical Seal and O-ring, Depending on Model |
|
| Optional Silicon Carbide Mechanical Seals Available |
|
| Stainless Steel Motor Shaft and Hardware |
|
| NEMA 56J TEFC Single or Three Phase Motors |
|
| NEMA Base Mounted Motor |
|
| Self-cleaning Impeller |
|
| Discharge Rotates in 90 Increments |
|
| Maximum Working Pressure 75 PSI |
|
| Maximum Temperature:Viton: 200 F, Buna-N: 180 F |
|
| Front Drain Plug |
|
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
368C-95
|
|
Type
|
Centrifugal Pumps
|
|
Series
|
Straight Centrifugal Pumps
|
|
Curve
|
B
|
|
HP
|
1/2
|
|
Phase
|
3
|
|
Enclosure
|
TEFC
|
|
Voltage
|
230/460
|
|
Full Load Amps
|
3/2
|
|
Suction
|
3/4" NPT
|
|
Discharge
|
1/2" NPT
|
|
L
|
12.4 [31.5]
|
|
W
|
8.3 [21.3]
|
|
H
|
7.2 [18.3]
|
|
Ship Wt. (Lbs.)
|
31
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
Item Number:
368C-95
Manufacturer:
AMT
Manufacturer Part No:
368C-999-95
|
|
|
