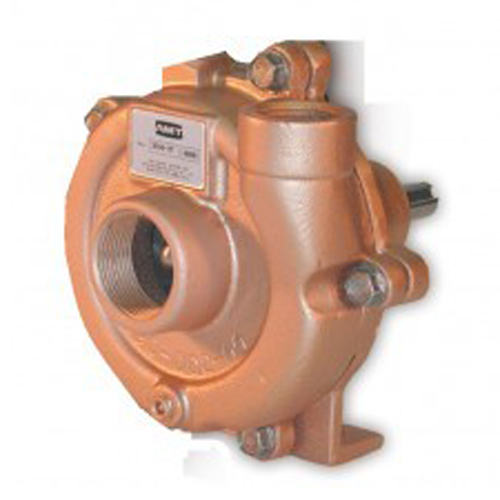

AMT Pumps 3704-97 Pedestal Pump (Min. 1 HP Required, 1" Suction 3/4" Discharge, Bronze, Bronze Impeller, Viton Shaft Seal)
|
Images may be generic. Please inquire
|
Your Price:
Call for Pricing
|
| Applications |
| AMT Straight Centrifugal Pedestal pumps are designed for continuous duty OEM, Industrial/ Commercial and processing applications including: circulation, chemical processing, liquid transfer, heating and cooling. The high head models are ideal for sprinkler systems and pressure boosting |
| |
| Features |
| Maximum Temperature: Buna-N: 180 F, Viton: 200 F |
|
| Self-cleaning Impeller on General Service Models |
|
| Epoxy Coated Pedestal Drive and Discharge Port Rotates in 90 Increments on High Head Models |
|
|
Specifications
|
|
Brand
|
AMT
|
|
Catalog Number
|
3704-97
|
|
Type
|
Straight Centrifugal Pedestal Pumps
|
|
Series
|
General Service Models
|
|
TYPE & MINIMUM HP REQUIRED
|
Pedestal Pump Sized for 1 HP
|
|
Minimum HP Required
|
1
|
|
CASING
|
Bronze
|
|
SHAFT SEAL
|
Viton/SS
|
|
IMPELLER
|
Bronze
|
|
SHIP WT (Lbs.)
|
11
|
|
Curve
|
B
|
|
SUC
|
1" NPT
|
|
DIS
|
3/4" NPT
|
|
Minimum BHP Required @ 3450 RPM
|
1.13
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
Item Number:
3704-97
Manufacturer:
AMT
Manufacturer Part No:
3704-999-97
|
|
|
