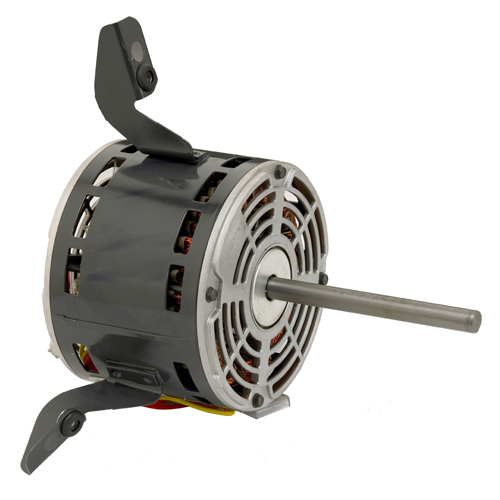

3785 U.S. Motors Direct Drive Fan and Blower Motor (1/3 HP, 115 Volts, 1075/3 RPM/Spds.)
| Applications |
| Designed to meet manufacturer's requirements for use on direct drive fan & blowers with flexible ear mounts. |
| |
| Features |
| 5.0" Diameter Motors CWLE Rotation |
24" Leads |
| 5.6" Diameter Motors Reversible Rotation |
PSC Motors Designed For 370V Capacitors |
| Class B Insulation |
Automatic Reset Thermal Overload Protector |
| Sleeve Bearings Have All Angle Thrust System |
Continuous Duty, Air Over |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Tech Specs
|
|
Brand
|
U.S. Motors/Emerson
|
|
Model Number
|
3785
|
|
HP
|
1/3
|
|
RPM/Spds.
|
1075/3
|
|
Volts
|
115
|
|
Cap MFD
|
7.5
|
|
Amps
|
5
|
|
Shaft Length (N)
|
5
|
|
Shell XI
|
4.6
|
|
Apx. Wt. (lb)
|
13
|
|
Total C
|
9.6
|
|
Diameter
|
5.6"
|
|
Capacitor
|
Permanent Split Capacitor
|
|
Type
|
Direct Drive Fan & Blower Motor
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Item Number:
3785
Manufacturer:
U.S. Motors
Manufacturer Part No:
3785
|
|
|
