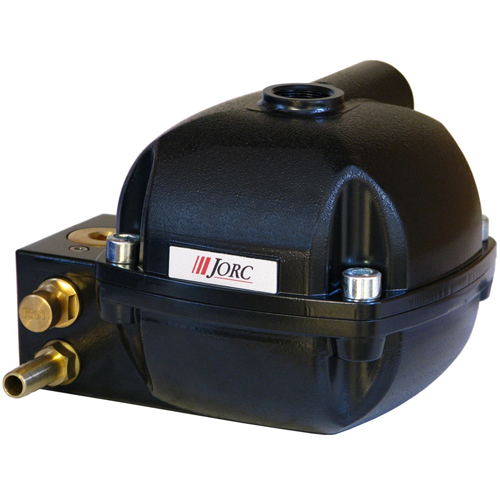

3805 Jorc POD-TD Level Sensing Drain (Triple 1/2" NPT, 44-230 PSI)

The Jorc 3805 POD-TD level sensing drain is pneumatically operated. It has no air loss, and does not need a power source to operate. The level controlled valve controls a cylinder valve to remove condensate from the system. Ideal for applications where electricity is not available or unsafe. Works with compressed air systems up to 3500 CFM

• Three 1/2" NPT inlets (top & 2 sides)
• 1/4" outlet with hose pipe connector
• Rated for 44-230 PSI (3-16 bar)
• 3/2 way direct acting valve
• Built-in strainer protects valve
• TEST feature
• Serviceable valve
• No balance line needed for top inlet
• Stable operation even with particles or emulsified condensate
• Easy installation

Specifications

• Dimensions- 4.429" Height x 6.059" Width x 4.949" Depth
• Max Compressor Capacity- 3500 CFM
• Valve Opening- 6 mm
• Valve Seals- FPM
• Inlet Height- 4.7" (top), 3.8" & 0.6" (side)
• Ambient Temperature- 34 F to 122 F (1 C to 50 C)
• Housing Material- Corrosion Resistant Aluminum
• Ingress Protection- NEMA 6 (IP 68)
