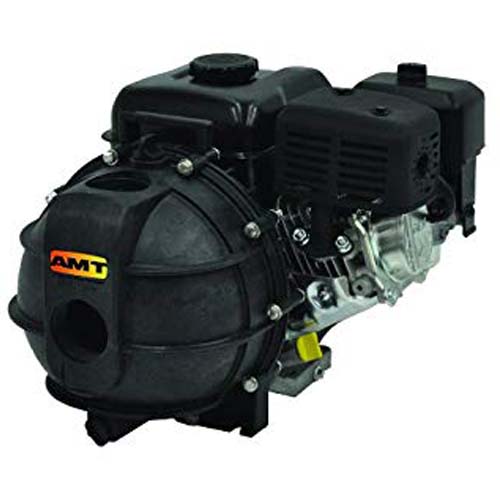

AMT Pumps 382A-99, 2" Thermoplastic AG / Dewatering Pump (5 HP, Honda GC160, 7/16" Dia Solids, 2" NPT Port, Buna-N Seals, 1.5 Hr Run Time)

Images may be generic. Please inquire

Your Price: Call for Pricing

Applications
The AMT line of Engine Driven Dewatering pumps offers economy, durability, portability and performance all in one neat package. Ideal for general purpose dewatering, irrigation, spraying, washdown and agricultural applications. Cast iron pumps feature dual volute design that reduces radial load on engine. Built-in check valve enables constant self-priming to 20 feet. Pump construction materials available in cast iron or corrosive resistant polypropylene components featuring removeable/replaceable volute and impeller. Pumps are available with Briggs & Stratton or Honda engines. Viton, EPDM and Silicon Carbide mechanical seal options are available on specific models.

Features
(2) NPT Pipe Nipples
Buna-N Mechanical Seal and Check Valve
Optional EPDM Seal Kit Available
O-ring Casing Seal
Self-primes to 20 feet with Built-in Check Valve
Replaceable Volute
Maximum Temperature 130 F

Specifications
Brand	AMT Pumps
Catalog Number	382A-99
Type	Engine Driven and Diaphragm Pumps
Series	2" Thermoplastic AG / Dewatering Pumps
QSP	Yes
Construction	Thermoplastic
Max Solids	7/16" Diameter
HP	5 HP
Curve	D
Port	2" NPT
Driver	Honda GC160
Seal	Buna-N
Run Time (Hours)	1.5
Tank Size (Gal/Ltr.)	0.47/1.7
SUC	2"
DIS	2"
Max GPM	190
Max PSI	48
L	18.8"
W	15.6"
H	12.7"
Warranty	1 Year
Notes	See Support Documents Below
